At Shift Lock Solenoid

Install in the reverse order of removal.

NOTE: Connect the solenoid unit terminals to the connector.

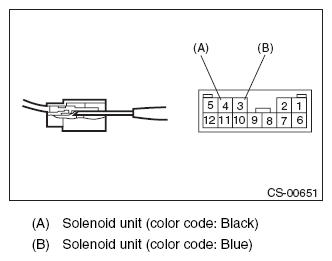

Fig 1: Connecting Solenoid Unit Terminals To Connector
G08544958Courtesy of SUBARU OF AMERICA, INC.
