DTC P0197 Engine Oil Temperature Sensor Low: Wiring Diagram

Engine electrical system Refer to Engine Electrical System Wiring Diagram.

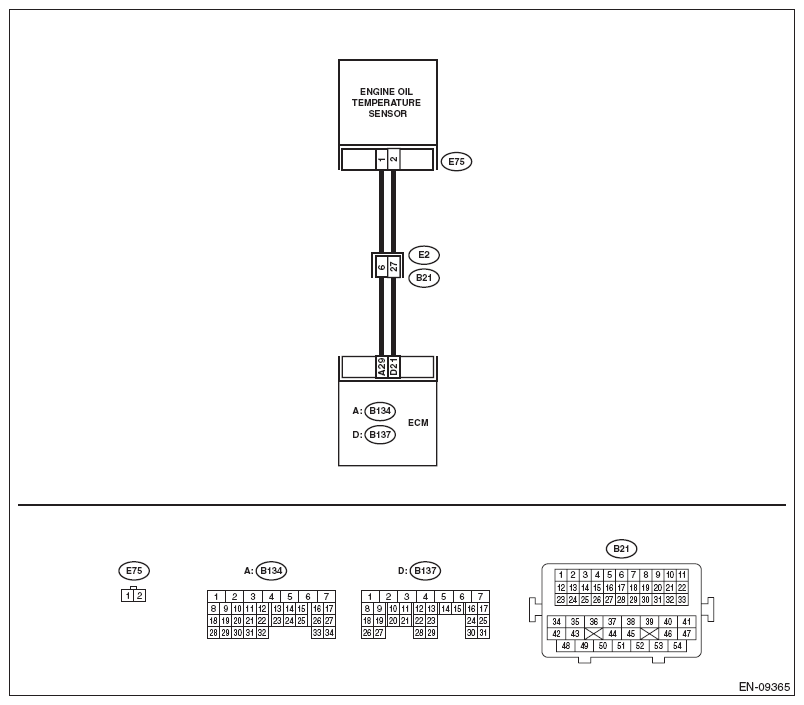

Fig 1: Engine Oil Temperature Sensor - Wiring Diagram
G08544687Courtesy of SUBARU OF AMERICA, INC.
