Oil Pressure Switch: Installation

WARNING: This page is about a different car, the 2013 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Apply liquid gasket to the oil pressure switch threads.
Liquid gasket:

THREE BOND 1324 (Part No. 004403042) or equivalent

Fig 1: Identifying Liquid Gasket Applying Area On Oil Pressure Switch Threads
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pressure switch to cylinder block.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 2: Identifying Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.
Connect the terminal to the oil pressure switch.
NOTE:
The oil pressure switch harness must be tightened within the range of a 90° angle as shown below.

Tightening torque:

1.5 N.m (0.2 kgf-m, 1.1 ft-lb)

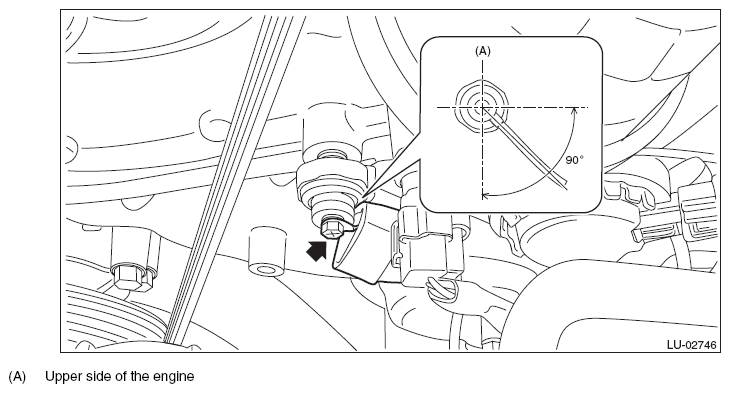

Fig 3: Identifying Oil Pressure Switch Terminal Bolt
Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Identifying Rubber Cap
Courtesy of SUBARU OF AMERICA, INC.
Attach the rubber cap.
Connect the battery ground terminal.

Fig 5: Connecting Battery Ground Terminal
Courtesy of SUBARU OF AMERICA, INC.
