Seat Memory Switch

  1. Disconnect the ground cable from battery.
  2. Remove the gusset cover.
    1. Attach the protective tape (a) to the door trim.
    2. Release the clips and claws, then detach the gusset cover.

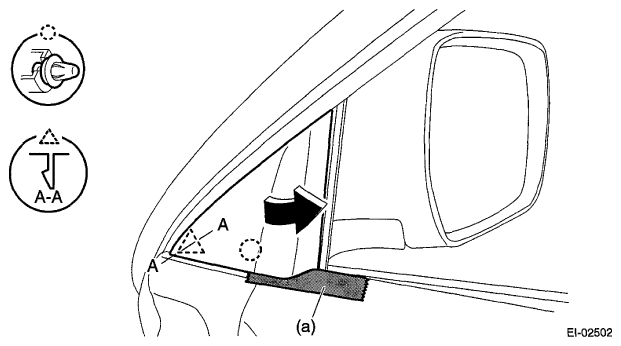

      Fig 1: Removing Gusset Cover
      G06653580
  3. Remove the door trim assembly.
    1. Open the cover and remove the screw.
    2. Remove the clips in the order of (A) to (J) and remove the door trim assembly from the door panel.
      CAUTION: When removing the door trim, be sure to remove the clips in the correct order. Forcibly removing clips may damage the door panel assembly.

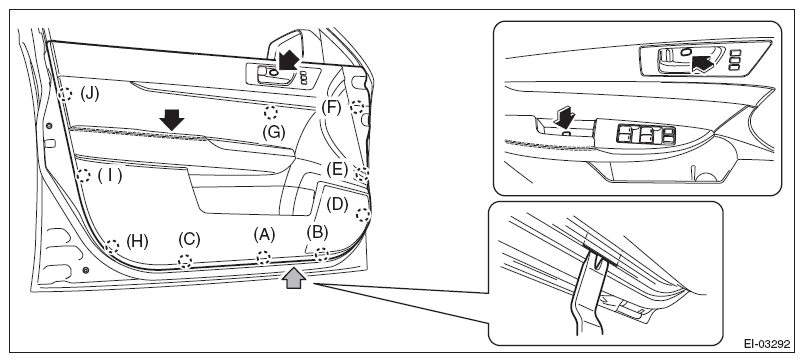

      Fig 2: Removing Door Trim Assembly
      G08584108
      NOTE: Insert a plastic clip remover into the slit at the bottom of the door trim, to lift the door trim.
    3. Remove the cables (a) and (b) from the cable holder of inner remote.

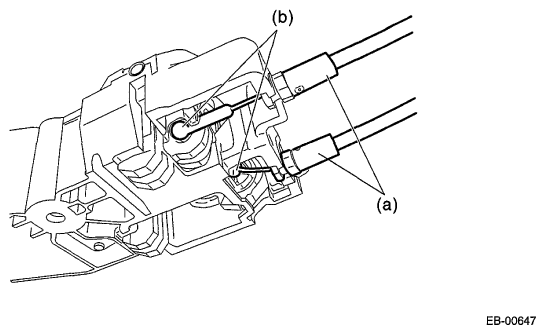

      Fig 3: Identifying Inner Remote Cable Holder Cables
      G06653582
    4. Disconnect the harness connector and remove the door trim assembly.
  4. Release the claws, and remove the seat memory switch assembly.
