Rear Seat (Sedan Model)

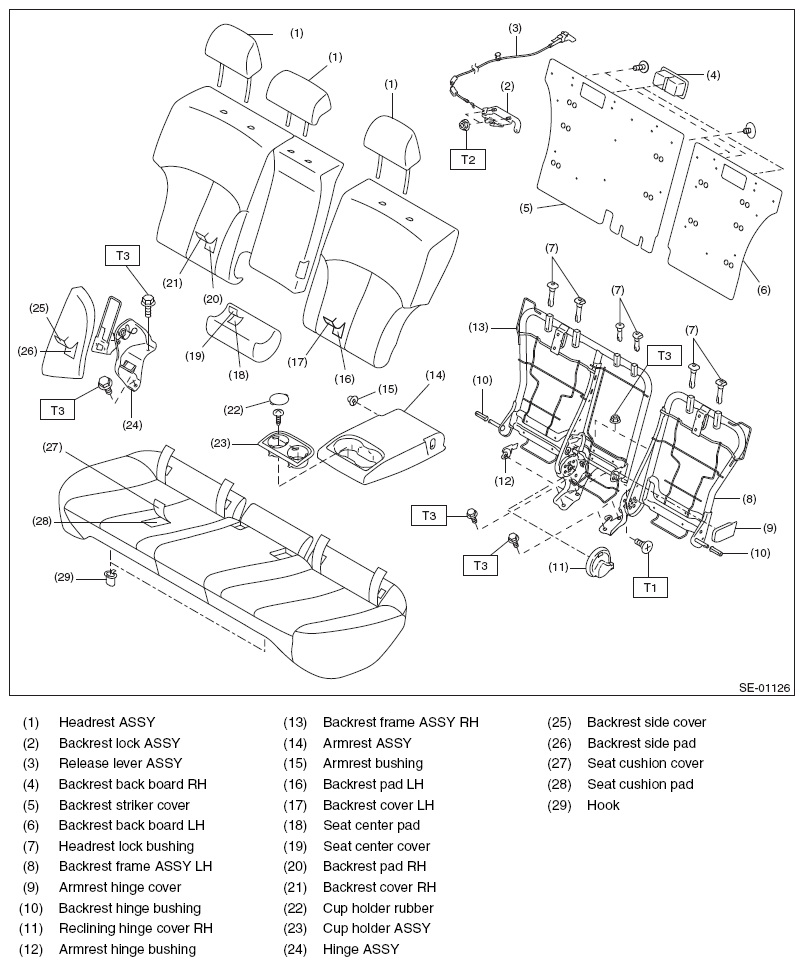

Fig 1: Rear Seat Replacement Components With Torque Specifications (Sedan Model)

G08584791

Tightening torque: N.m (kgf-m, ft-lb)

T1: 9.8 (1.0, 7.2)

T2: 24.5 (2.5, 18.1)

T3: 53 (5.40, 39.1)
