Outback Model

  1. Disconnect the ground cable from battery.
  2. Remove the clips and turn over the front end of front mud guard.
    Fig 1: Locating Front Mud Guard Mounting Clips
    G06653452Courtesy of SUBARU OF AMERICA, INC.
  3. From the bottom of bumper face, remove the front fog light bulb.
    1. Disconnect the connector.
    2. Remove the bulb.

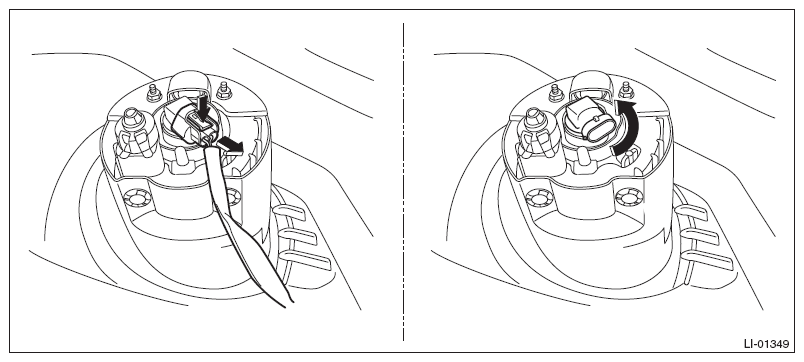

      Fig 2: Removing Front Fog Light Bulb
      G08584430Courtesy of SUBARU OF AMERICA, INC.
