Sedan Model

  1. Disconnect the ground cable from battery.
  2. Remove the clips and turn over the front end of front mud guard.
    Fig 1: Locating Front Mud Guard Mounting Clips
    G06653452Courtesy of SUBARU OF AMERICA, INC.
  3. From the bottom of bumper face, remove the front fog light assembly.
    1. Disconnect the connector.
    2. Remove the screws, and remove the front fog light assembly.

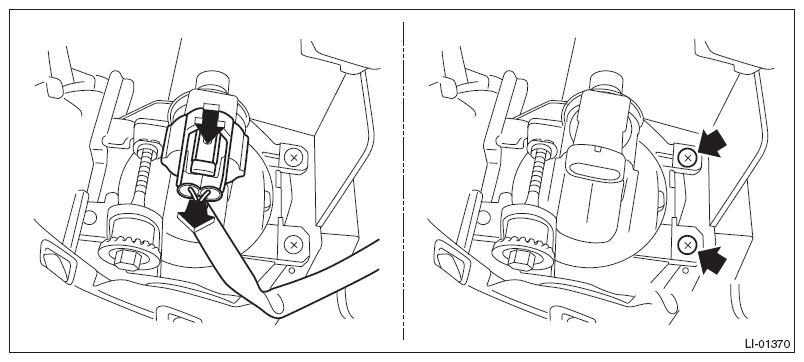

      Fig 2: Removing Front Fog Light Assembly
      G08584420Courtesy of SUBARU OF AMERICA, INC.
