Oil Cooler

The oil cooler used in turbo models is of a water cooled type. It serves to maintain engine oil in proper temperature range and so prevent degradation of lubricating oil performance.

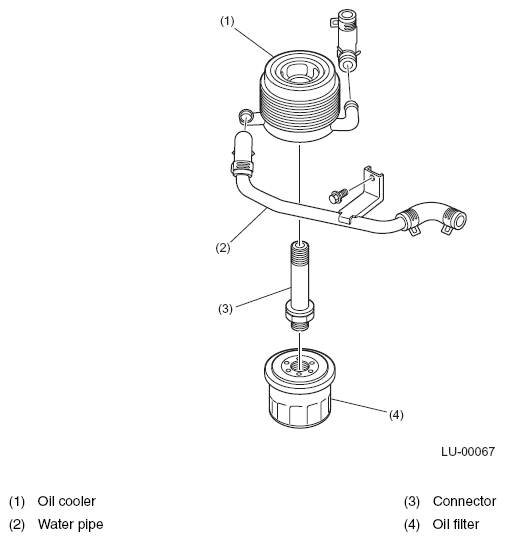

Fig 1: Exploded View Of Oil Cooler
G08260796Courtesy of SUBARU OF AMERICA, INC.
