DTC P0606 Control Module Processor: Wiring Diagram

Refer to engine electrical system, without SI-DRIVE in the wiring diagram. < Refer to System Wiring Diagram Article. >
Refer to Engine electrical system, with SI-DRIVE in the wiring diagram.< Refer to System Wiring Diagram Article. >

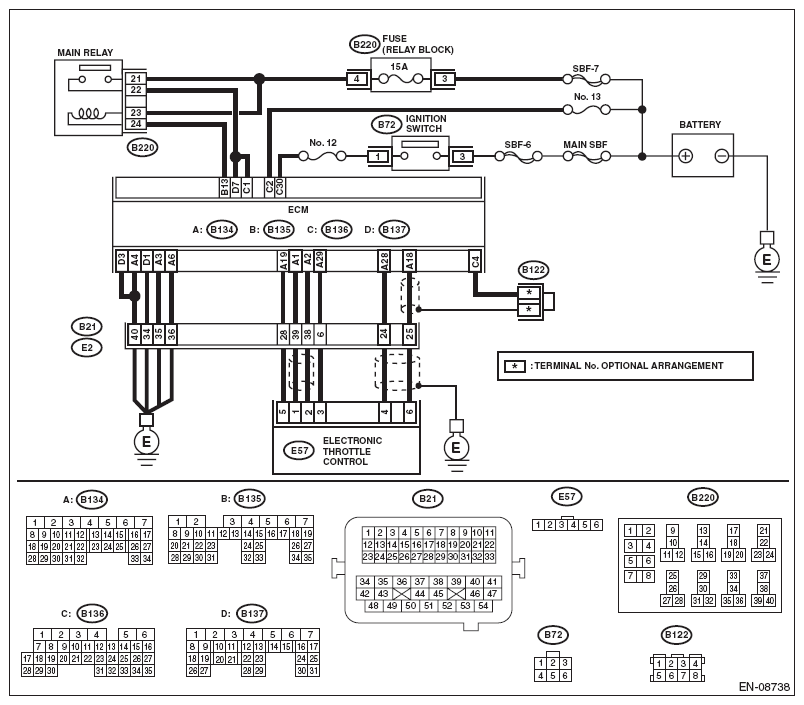

Fig 1: Engine Control Module - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
