Grip ASSY

  1. Remove the button assembly AT.

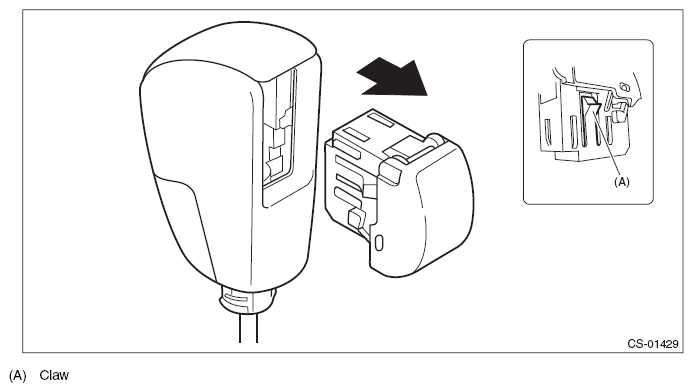

    Fig 1: Removing Button Assembly AT
    G08550588Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the rod COMPL.
