DTC P0606 Control Module Processor: Wiring Diagram

Refer to Engine Electrical System in the wiring diagram < Refer to System Wiring Diagram Article.. >

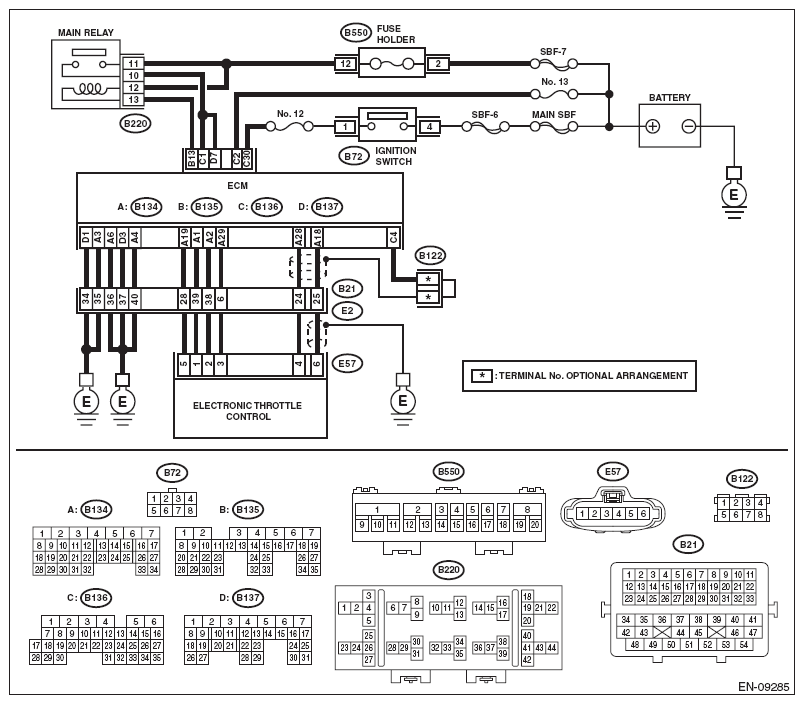

Fig 1: Engine Electrical System - Wiring Diagram (Control Module Processor)
G08315958Courtesy of SUBARU OF AMERICA, INC.
