Window Washer

Check that the window washer system injects washer fluid to the specified area of the windshield and rear window glass shown in the figure.

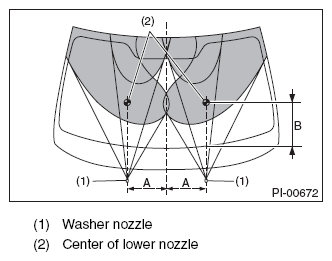

Front injection position:

A: 250 mm (9.84 in)

B: 279 mm (10.99 in)

Fig 1: Identifying Window Washer Front Injection Position

Courtesy of SUBARU OF AMERICA, INC.

Rear injection position:

A: 72°

B: 45 mm (1.8 in)

C: 36 mm (1.4 in)

Fig 2: Identifying Window Washer Rear Injection Position

Courtesy of SUBARU OF AMERICA, INC.
