2013MY BRZ Revised Vehicle Stability Control (VSC) Diagnostics (SUSTIPS 1112-01)

Publication date: 2012-11-01
Reference number: SUSTIPS 1112-01

2013MY BRZ REVISED VEHICLE STABILITY CONTROL (VSC) DIAGNOSTICS

TECHNICAL INFORMATION TECH TIPS

Reference Number(s): SUSTIPS 1112-01, Date of Issue: November 01, 2012

SUBARU:

2013MY BRZ

SERVICE INFORMATION

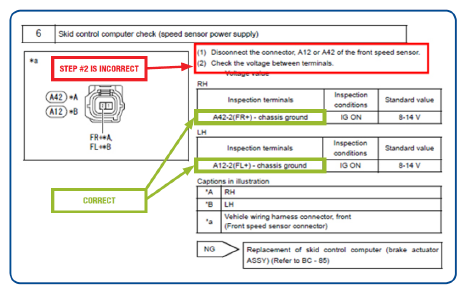

When diagnosing the following front or rear wheel speed sensor circuit DTCs on a 2013MY BRZ, C1330, C1331, C1332, C1333, C1464, C1465 C1466 or C1467, be advised diagnostic step #2 in the Service Manual is incorrect. The instructions direct you to check the voltage between the terminals of connector A12 (L/Front) and / or A42, (R/Front), G9 (R/Rear) and / or H12, L/Rear. To clarify, the voltage checks should be between the terminals and chassis ground. The illustration below is for the front wheel speed sensors but the chart for the rear is the same except for the connector numbers.
