Door Control Receiver: Removal

WARNING: This page is about a different car, the 2018 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Removal of separate type rear seat cushion ASSY RH (Refer to REMOVAL )
  2. Removal of separate type rear seat cushion ASSY LH
    NOTE: Remove the part in the same manner as RH side.
  3. Removal of the front door scuff plate RH (Refer to REMOVAL )
  4. Removal of front door scuff plate LH
    NOTE: Remove the part in the same manner as RH side.
  5. Removal of front door opening trim weather strip RH (Refer to REMOVAL )
  6. Removal of front door opening trim weather strip LH
    NOTE: Remove the part in the same manner as RH side.
  7. Disconnection of trunk trim cover INN RH (Refer to REMOVAL )
  8. Disconnection of trunk trim cover INN LH
    NOTE: Disconnect in the same manner as RH side.
  9. Removal of quarter lower trim RH (Refer to REMOVAL )
  10. Removal of quarter lower trim LH
    NOTE: Remove the part in the same manner as RH side.
  11. Removal of quarter trim lid RH (Refer to REMOVAL )
  12. Removal of quarter trim lid SUB-ASSY LH
    NOTE: Remove the part in the same manner as RH side.
  13. Removal of the rear window side garnish RH (Refer to REMOVAL )
  14. Removal of the rear window side garnish LH
    NOTE: Remove the part in the same manner as RH side.
  15. Removal of package tray trim panel ASSY

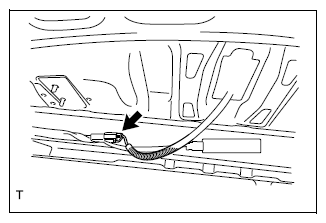

    1. Disconnect the connector.
      G12589238Courtesy of SUBARU OF AMERICA, INC.

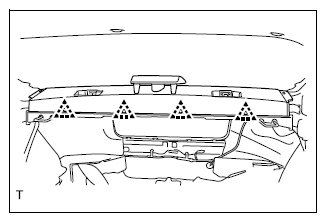

    2. Remove the 4 clips.
      G12589239Courtesy of SUBARU OF AMERICA, INC.

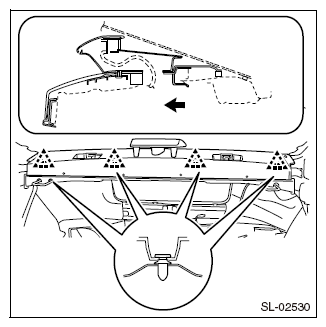

    3. Release the four clips and remove the package tray trim panel ASSY and center stop light ASSY as a single unit by pulling them toward you.
      G08557498Courtesy of SUBARU OF AMERICA, INC.
  16. Removal of door control receiver

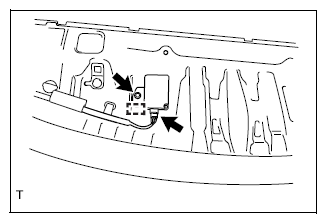

    1. Disconnect the connector.
    2. Remove the bolt.
    3. Remove the guide and remove the door control receiver.
      CAUTION: Do not drop or apply strong impact to the door control receiver.
      G12589241Courtesy of SUBARU OF AMERICA, INC.
