Unit Inspection

WARNING: This page is about a different car, the 2019 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspection of trunk lock ASSY
    1. Operation check of trunk lock ASSY
      1. Set the latch of the trunk lock ASSY to the lock position.
      2. Check the motor operation when battery voltage is applied between the terminals of the connector.
      BATTERY CONNECTION - CRITERIA

      Battery connection Door lock operation
      Battery positive →1 (B)
      Battery ground →2 (E)      		 Lock →Open
    2. Inspection of trunk lock ASSY courtesy switch
      1. Measure the resistance between the terminals.
    STANDARD VALUE RESISTANCE SPECIFICATION

    Inspection terminals Inspection conditions Standard value
    Tester positive →2(E)
    Tester negative →3(D+)    		 Locked 10 kΩ or more
    Open Less than 1 Ω

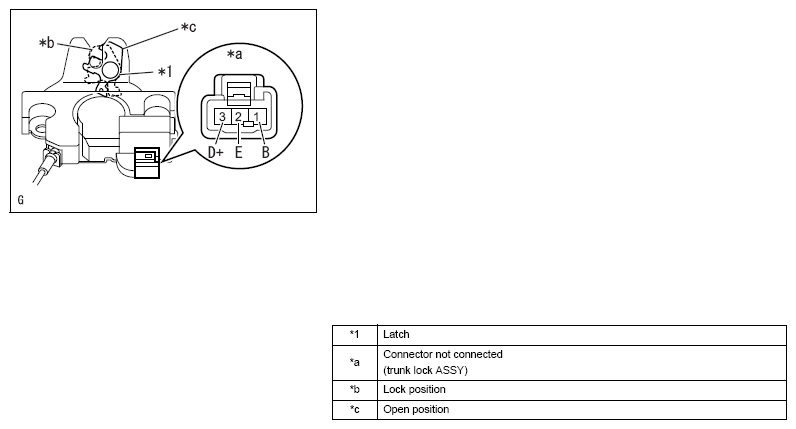

    G12589235Courtesy of SUBARU OF AMERICA, INC.
