Electrical Specification

Fig 1: Identifying Engine Control Module I/O Signal Connector
G05004622Courtesy of SUBARU OF AMERICA, INC.

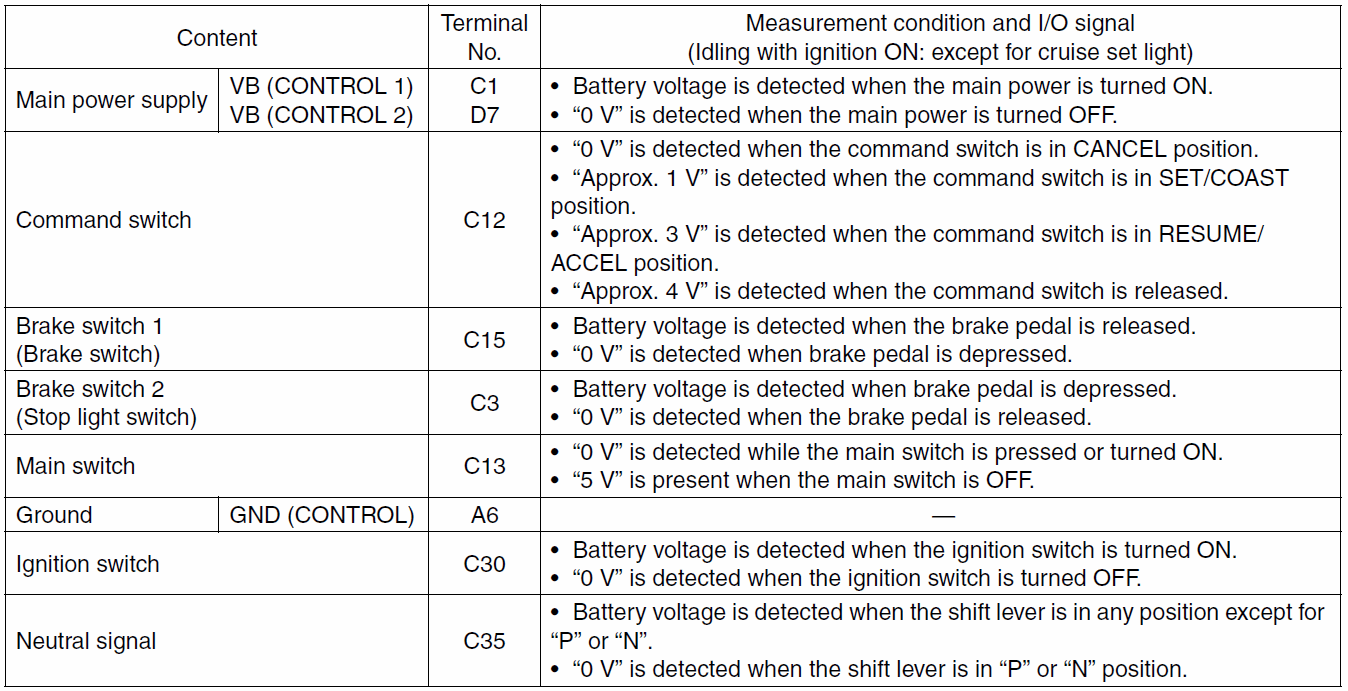

Fig 2: Engine Control Module I/O Signal Terminal Reference Chart
G00514593Courtesy of SUBARU OF AMERICA, INC.
