Seat Belt Warning Light

A seat belt warning light is provided for the front seats to warn the passengers to fasten the seat belt.

The driver's seat warning light is located in the combination meter, and the front passenger's seat belt warning light and rear seat belt fastening indicator are located at the center of the map light lens.

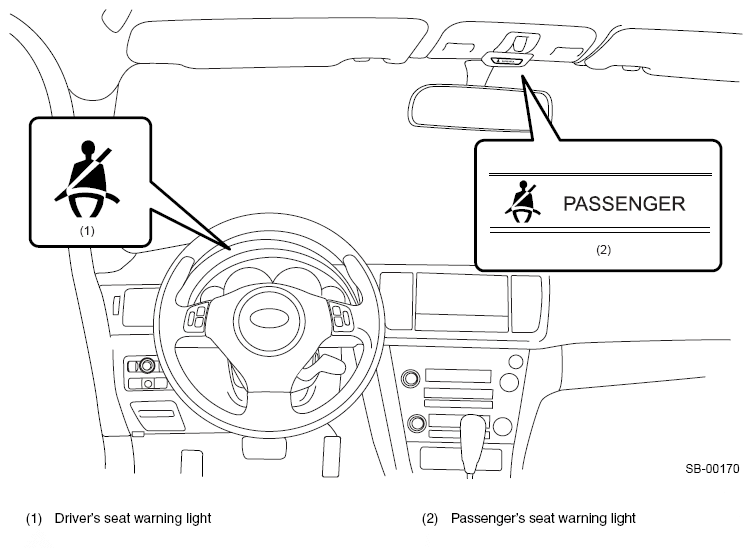

Fig 1: Identifying Driver And Passenger Seat Warning Light
G08260497Courtesy of SUBARU OF AMERICA, INC.
