Engine Coolant Temperature Sensor And Heater Hose

WARNING: This page is about a different variant/trim than selected.

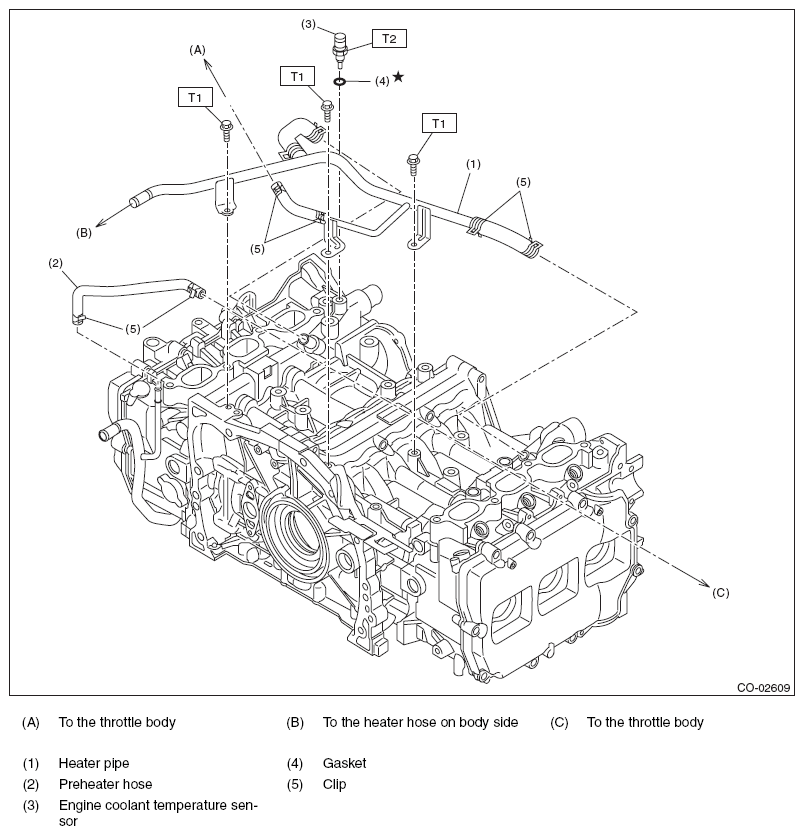

Fig 1: Exploded View Of Engine Coolant Temperature Sensor And Heater Hose With Torque Specifications
G07912864Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 19 (1.9, 14.0)
