Rear Wiper

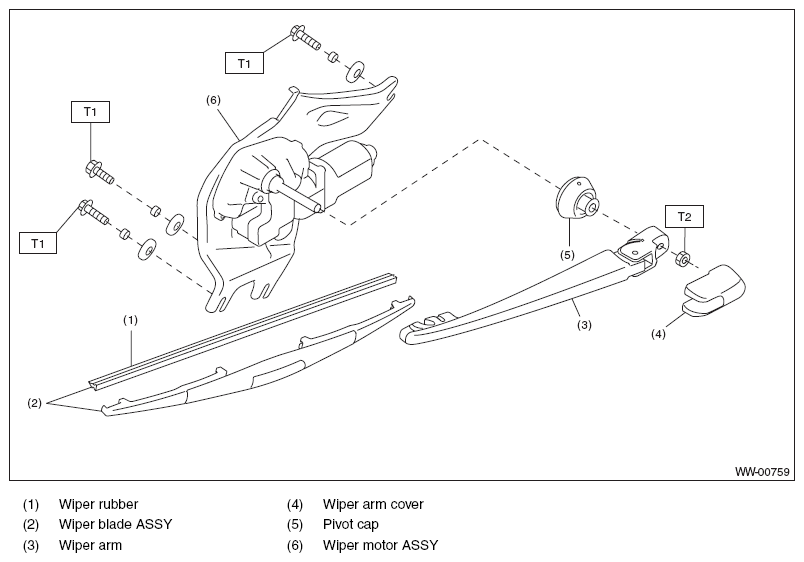

Fig 1: Exploded View Of Rear Wiper With Torque Specification

G07916142

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7 (0.71, 5.2)

T2: 8 (0.82, 5.9)
