Rear Seat (Outback Model)

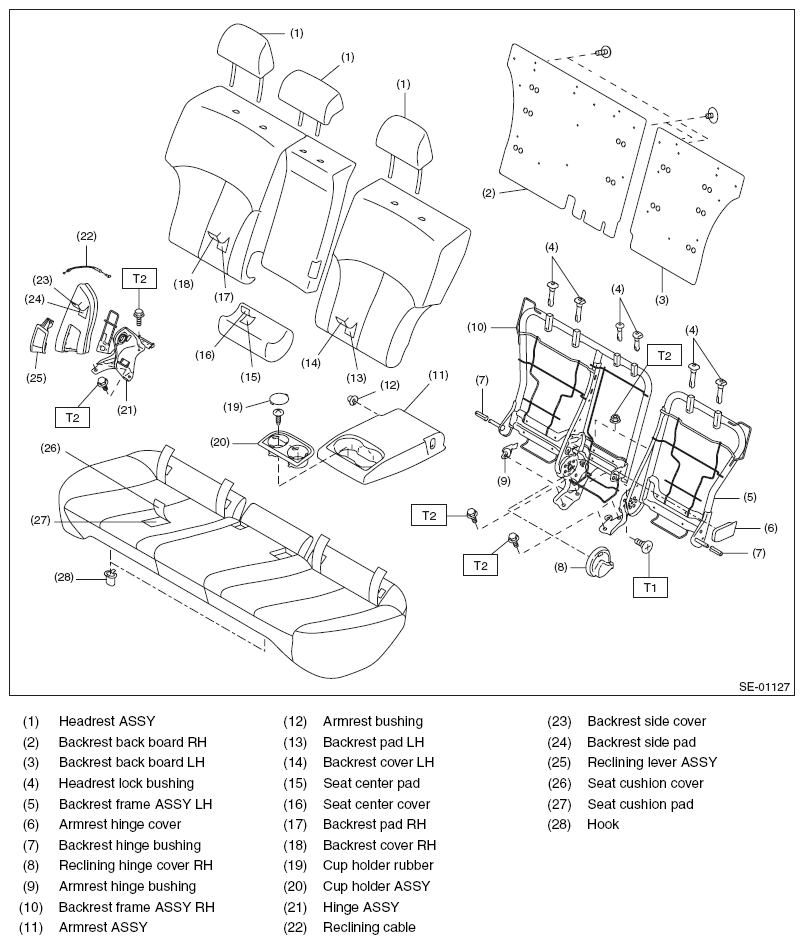

Fig 1: Exploded View Of Rear Seat (Outback Model)

G07916421

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 24.5 (2.5, 18.1)

T2: 53 (5.4, 39.1)
