SI-DRIVE (SUBARU Intelligent Drive) Selector: Inspection

Check that the multi select switch does not have deformation, cracks, or damage.

Check the resistance between the terminals at the SI-DRIVE selector.

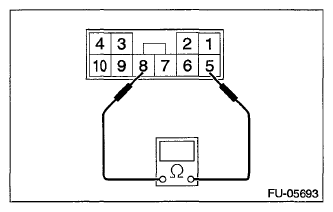

Fig 1: Measuring Resistance Between Terminals At SI-DRIVE Selector

Courtesy of SUBARU OF AMERICA, INC.

TEMPERATURE RESISTANCE REFERENCE CHART

Switch position	Terminal No.	Standard
Sport (When turning the SI-DRIVE selector to the left)	5 and 8	Less than 1 Ω
Intelligent (When pressing the SI-DRIVE selector)		1±0.05 kΩ
Sport Sharp (When turning the SI-DRIVE selector to the right)		3.67±0.1835 kΩ
