Design Change To Rubber Sealing Cap For Oil Pressure Switch (02-141-13R)

Publication date: 2013-08-07
Reference number: 02-141-13R
Supersedes refnos: 02-141-13

DESIGN CHANGE TO RUBBER SEALING CAP FOR OIL PRESSURE SWITCH

TECHNICAL SERVICE BULLETIN

Reference Number(s): 02-141-13R, Date of Issue: August 7, 2013

SUBARU:

2012 and Later Impreza; 2011 and Later Forester

Superceded Bulletin(s): 02-141-13, Date of Issue: May 28, 2013

APPLICABILITY

2012MY and Later Impreza Models with FB Engine 2011MY and Later Forester, N/A and Turbo Models

INTRODUCTION

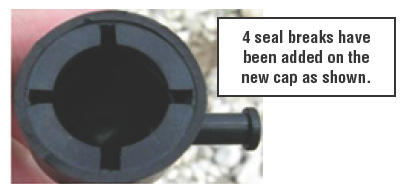

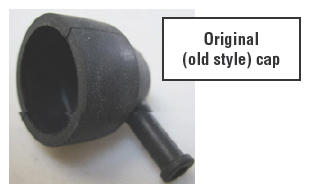

This Bulletin provides information regarding a design change to the rubber cap which covers the electrical connection at the oil pressure switch. The new cap provides better sealing and resistance to moisture intrusion which can compromise the electrical connection and in some cases, cause the oil pressure warning lamp to illuminate in error.

COUNTERMEASURE IN PRODUCTION

The new rubber cap was incorporated into production during early December, 2012, starting with the following VINs:

VEHICLE TYPE	MODEL	STARTING VIN
Impreza	4-Door	D*017346
Impreza	5-Door	D*823167
Forester	All	D*400124

PART INFORMATION

PART NAME	NEW PART NUMBER
Cap-Terminal	22187AA080

SERVICE PROCEDURE/INFORMATION

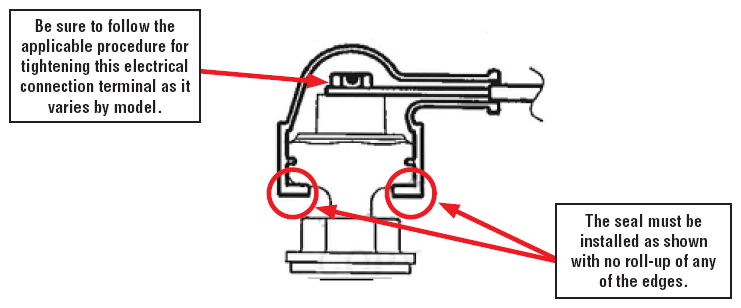

Follow the procedure in the applicable Service Manual if replacing the oil pressure switch. Be sure to follow the proper torque procedure for both the switch and the electrical connection where applicable as it varies by model. The rubber material used to make the cap is soft and pliable enough so the wire and terminal eyelet can be pushed through the "tube" portion easily. Use a little bit of dielectric grease on the terminal eyelet as a lubricant if necessary. Confirm the new rubber cap is installed as shown in the illustration above with no roll-up of the bottom sealing edges.

WARRANTY/CLAIM INFORMATION

For vehicles within the Basic New Car Limited Warranty period, this repair may be claimed using the following information:

LABOR DESCRIPTION	LABOR OPERATION #	FAIL CODE	LABOR TIME
Oil Pressure Switch Sealing Cap R&R	A241-112	AFS-29	0.2

NOTE: This claim coding is to be used for replacement of the Switch Sealing Cap only. It is NOT to be used for replacing the oil pressure switch.
