Rear ABS Wheel Speed Sensor: Removal

Disconnect the ground cable from battery.
Disconnect the connector from the rear ABS wheel speed sensor.

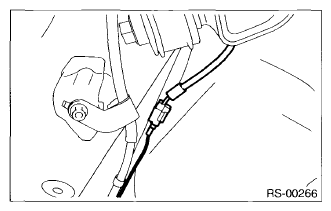

Fig 1: Rear ABS Wheel Speed Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the sensor harness clamp of the rear sub frame.

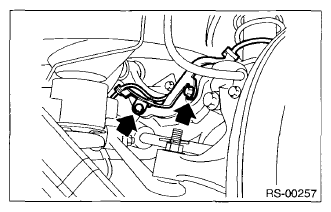

Fig 2: Sensor Harness Clamp Of Rear Sub Frame
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts and then remove the sensor harness bracket from the upper arm.

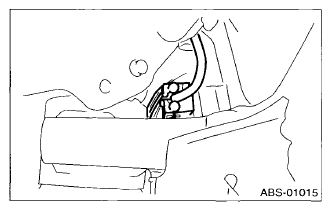

Fig 3: Locating Upper Arm Sensor Harness Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts, and remove the rear ABS wheel speed sensor from the rear axle.
CAUTION:
- Be careful not to damage the sensor.
- Do not apply excessive force to the sensor harness.

  Fig 4: Locating Rear ABS Wheel Speed Sensor Bolt
  Courtesy of SUBARU OF AMERICA, INC.
