Home >> Subaru >> 2012 >> Forester X, Automatic Trans >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System - Vehicle Dynamics Control (VDC) (Diagnostics) >> Control Module I/O Signal >> Wiring Diagram

Control Module I/O Signal: Wiring Diagram

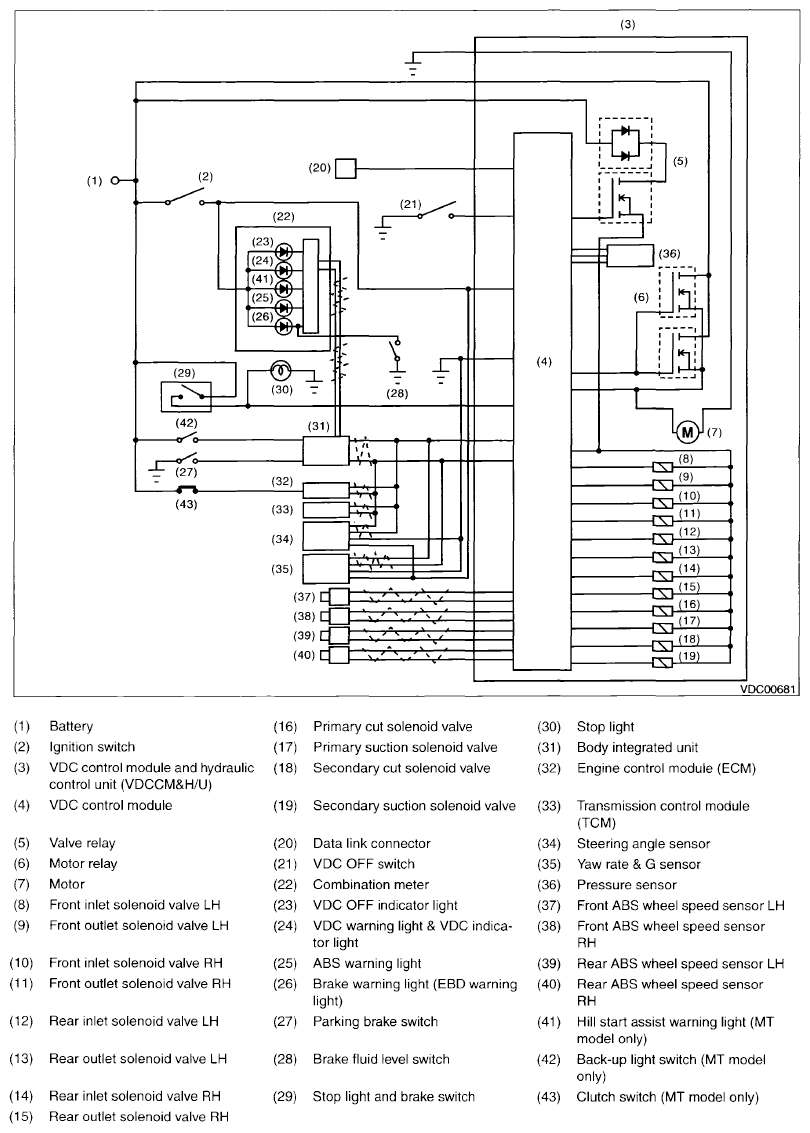

Fig 1: Control Module Wiring Diagram

G07666286

Courtesy of SUBARU OF AMERICA, INC.
