Fuel Filler Pipe

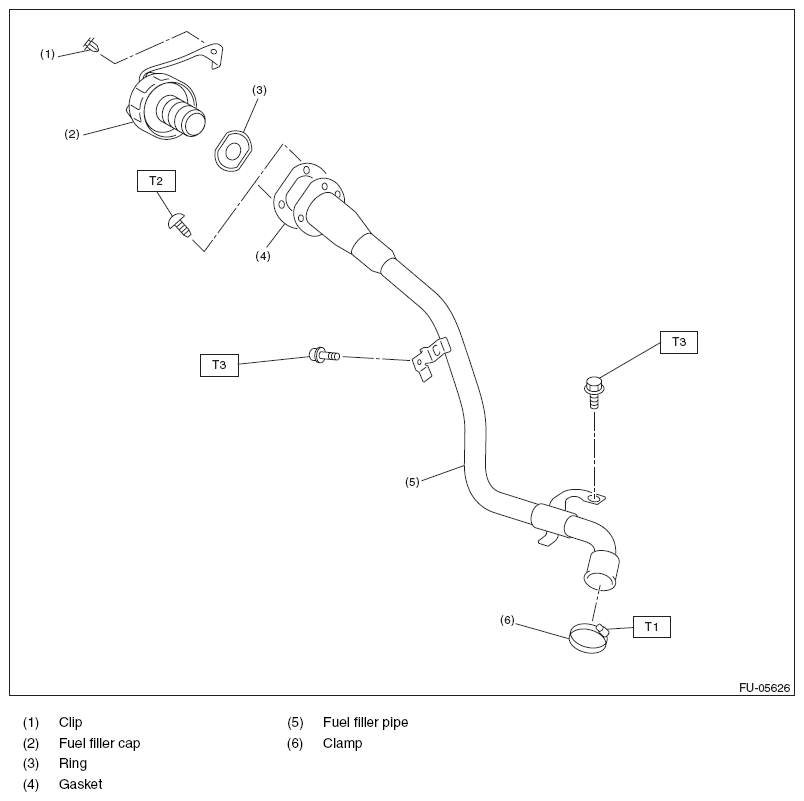

Fig 1: Identifying Fuel Filler Pipe Components

G07924377

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2.5 (0.3, 1.8)

T2: 4.5 (0.5, 3.3)

T3: 7.8 (0.8 5.5)
