Select Cable: Removal

Set the vehicle on a lift.
Shift the select lever to "N" range.
Disconnect the ground cable from battery.
Lift up the vehicle.
Remove the front, center and rear exhaust pipes. < Ref. to REMOVAL , Front Exhaust Pipe. > < Ref. to REMOVAL , Center Exhaust Pipe. > < Ref. to REMOVAL , Rear Exhaust Pipe. >
Remove the heat shield cover.

Fig 1: Identifying Heat Shield Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap pin and washer from the shifter arm.

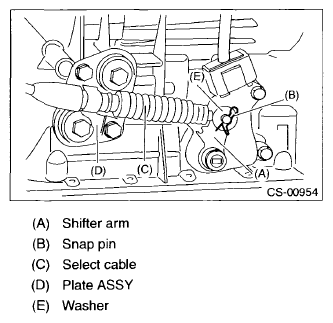

Fig 2: Identifying Shifter Arm, Snap Pin, Select Cable, Plate ASSY And Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate assembly from the transmission case.

Fig 3: Identifying Select Cable And Plate ASSY
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the cable from arm assembly.

Fig 4: Identifying Adjusting Nut And Arm ASSY
Courtesy of SUBARU OF AMERICA, INC.
Raise the claw of clamp to remove the cable from bracket.

Fig 5: Identifying Clamp Claw
Courtesy of SUBARU OF AMERICA, INC.
Remove the select cable from plate assembly.
