Main Relay: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the glove box lid assembly. Ref. to REMOVAL , Glove Box.
  3. Remove the main relay.

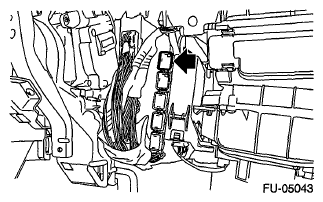

    Fig 1: Locating Main Relay
    G06651300Courtesy of SUBARU OF AMERICA, INC.
