Forward Clutch Assembly And Reduction Driven Gear

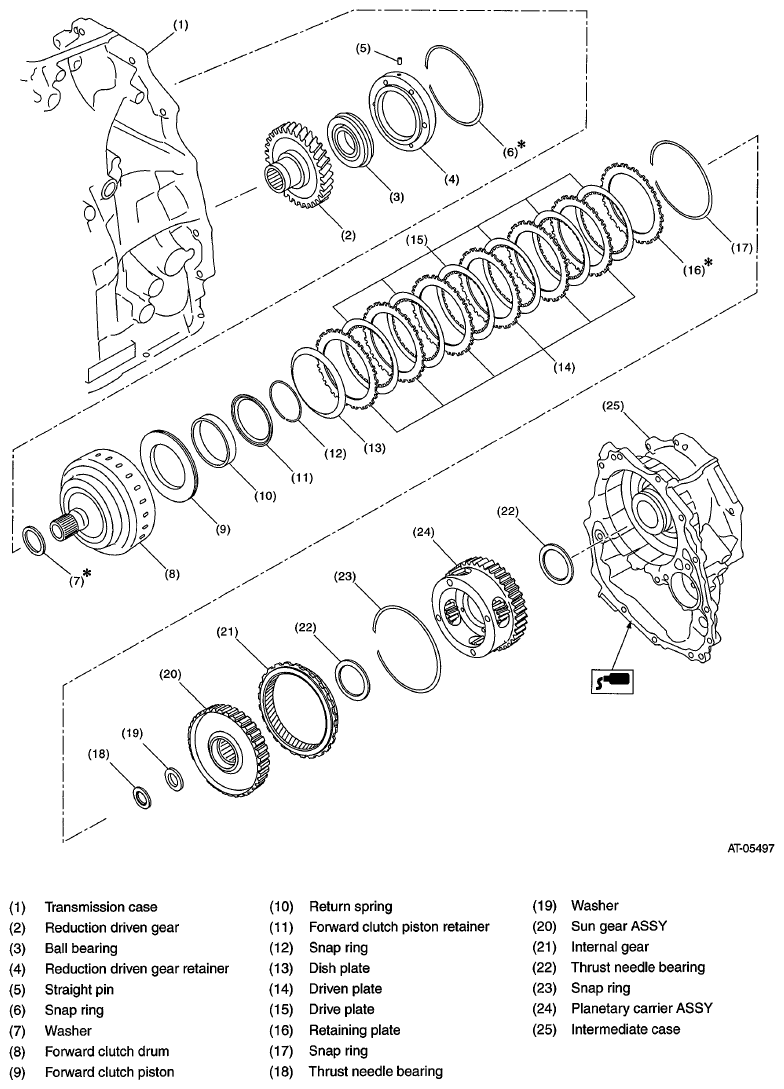

Fig 1: Identifying Forward Clutch Assembly And Reduction Driven Gear Components

G06654284

Courtesy of SUBARU OF AMERICA, INC.
