Fuel Injection System - Fuel Injection (Fuel Systems) (H4SO - 2.5L SOHC)
>>
General Description
>>
Components With Torque Specifications
>>
Fuel Filler Pipe
Fuel Filler Pipe

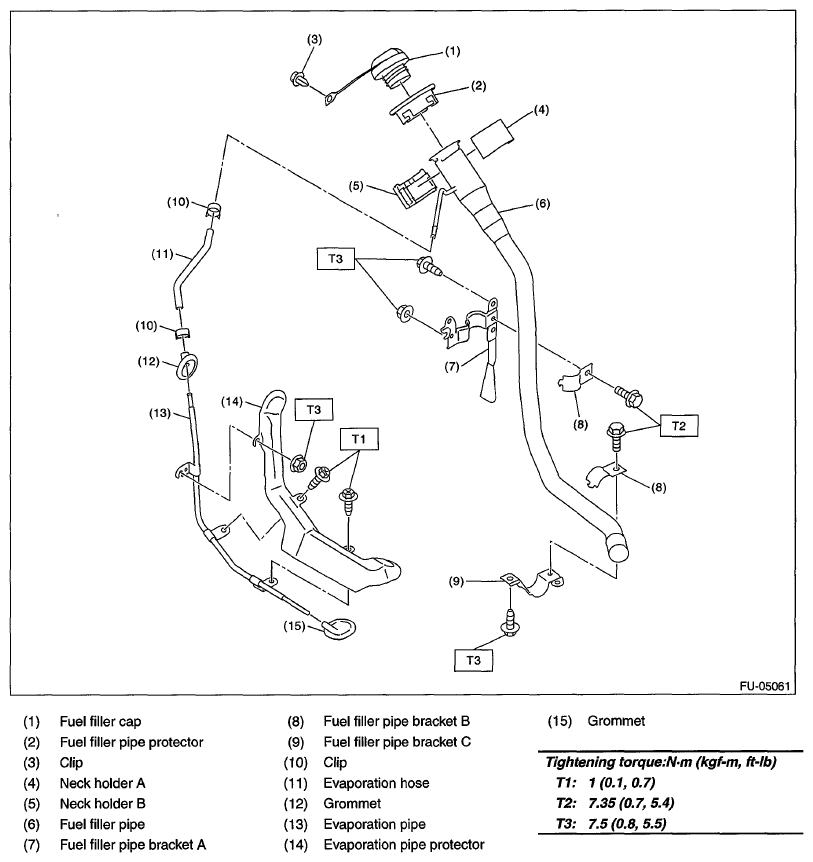

Fig 1: Fuel Filler Pipe Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
