Front Fog Light Assembly: Removal

WARNING: This page is about a different car, the 2009 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from the battery.
Remove the fog light cover.

Fig 1: Removing Fog Light Cover

Courtesy of SUBARU OF AMERICA, INC.

Disengage the three clips, then peel the mud guard.

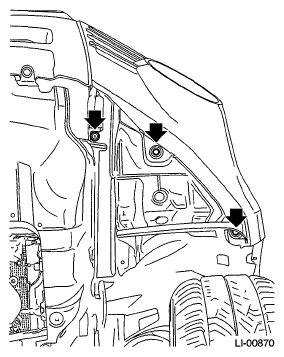

Fig 2: Locating Mud Guard Clips

Courtesy of SUBARU OF AMERICA, INC.

Disconnect the harness connector.
Remove the plastic nut and bolt, and remove the fog light assembly.

Fig 3: Locating Fog Light Assembly Plastic Nut And Bolts

Courtesy of SUBARU OF AMERICA, INC.
