Rear Seat Belt (Wagon Model)

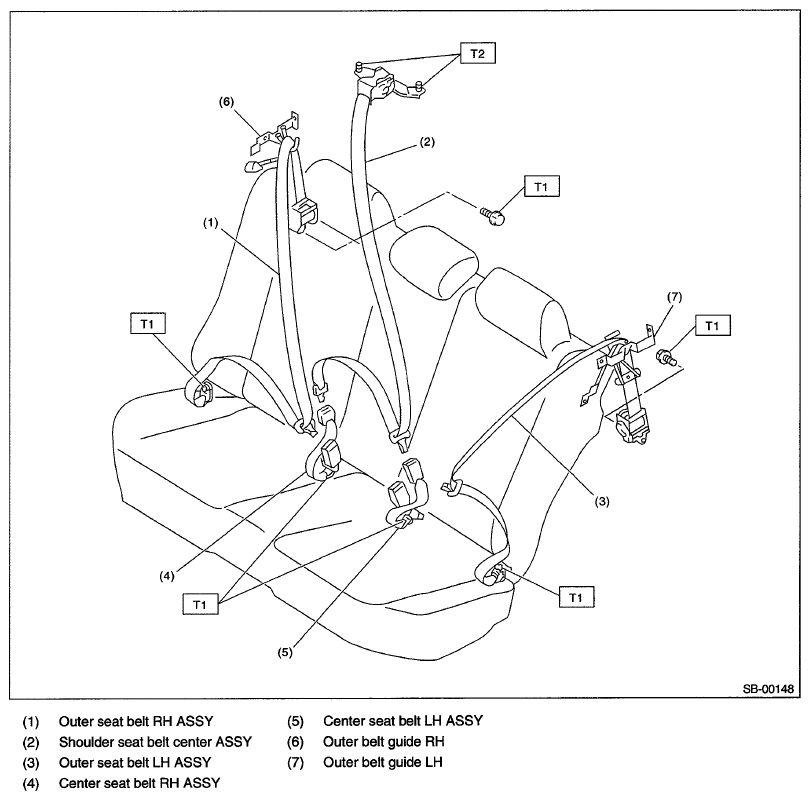

Fig 1: Identifying Rear Seat Belt Components (Wagon Model)

G06339921

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 30 (3.1,22)

T2: 53 (5.4,39.1)
