Restraints
>>
Restraints Control Systems
>>
Seat Belt System
>>
General Description
>>
Components With Torque Specifications
>>
Rear Seat Belt
Rear Seat Belt

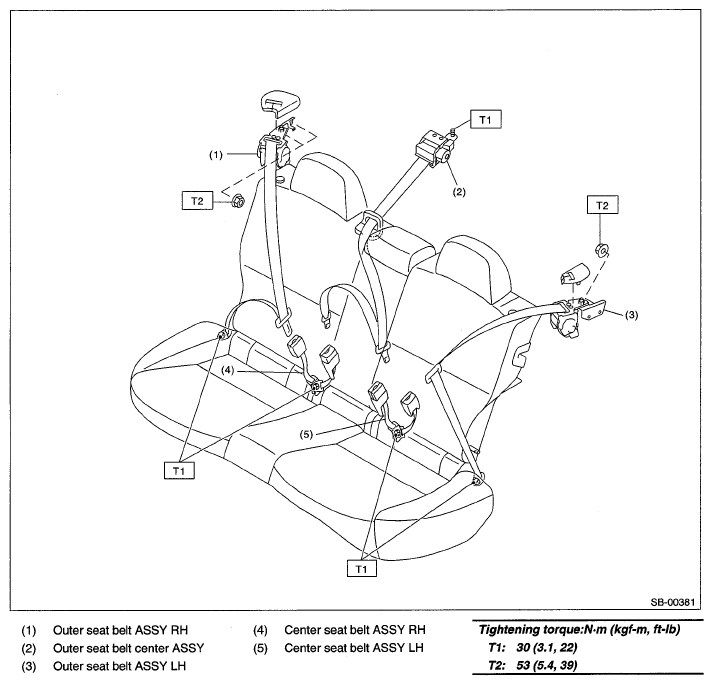

Fig 1: Rear Seat Belt Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
