Tilt Mechanism
The steering wheel vertical position can be adjusted within a 38 mm (1.50 in) range by using the tilt lever to unlock the steering column and lock it again at the desired position.

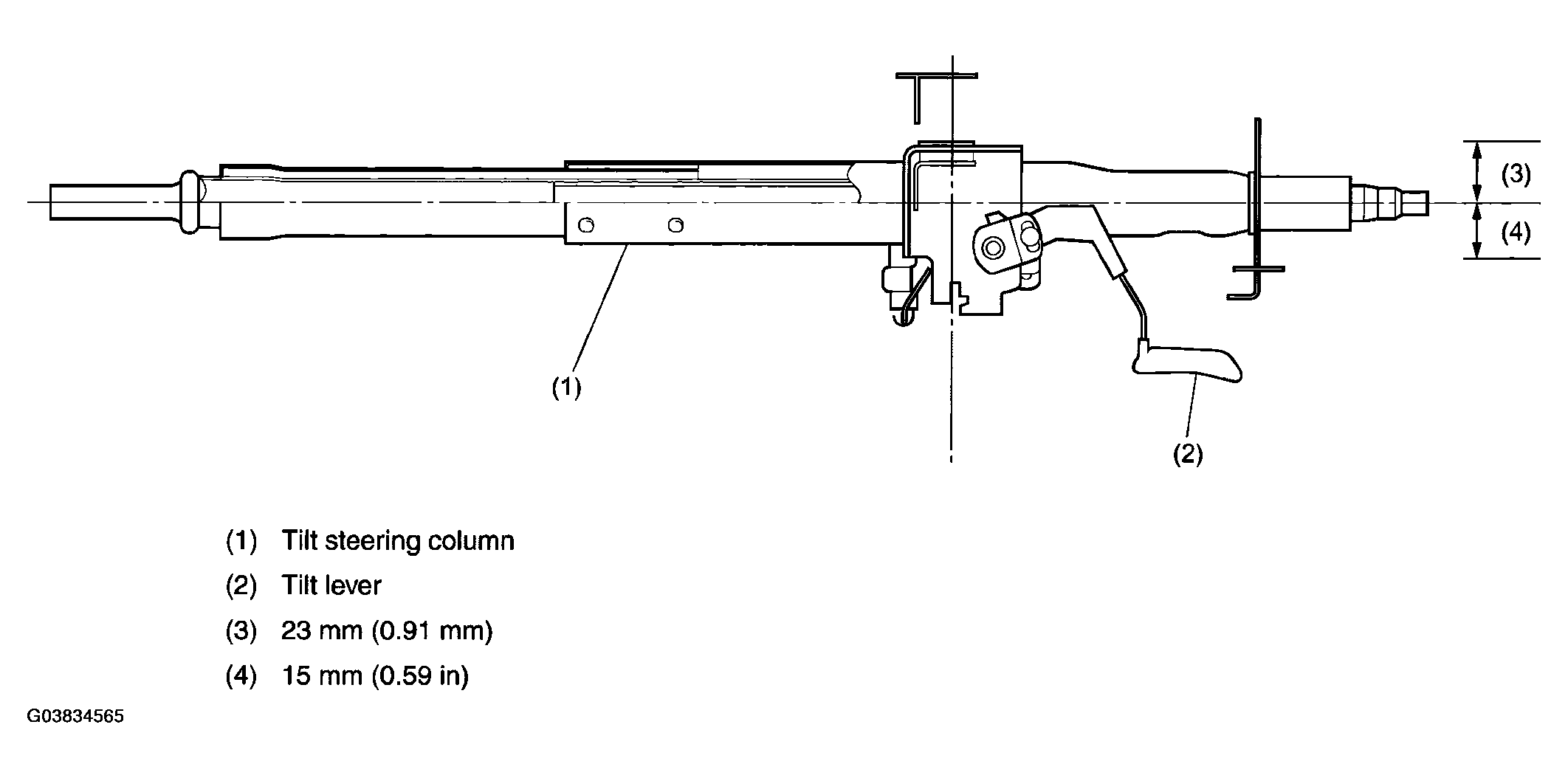

Fig 1: Identifying Tilt Steering Column - Tilt Mechanism
Courtesy of SUBARU OF AMERICA, INC.
