Adjustable Shoulder Belt Anchor: Front

Each front seat belt system has an adjustable shoulder belt anchor, which allows the occupant to select the most appropriate anchor height from among the five positions in a 90 mm (3.54 in) range.

The sash guide is put inside the pillar trim to improve the appearance.

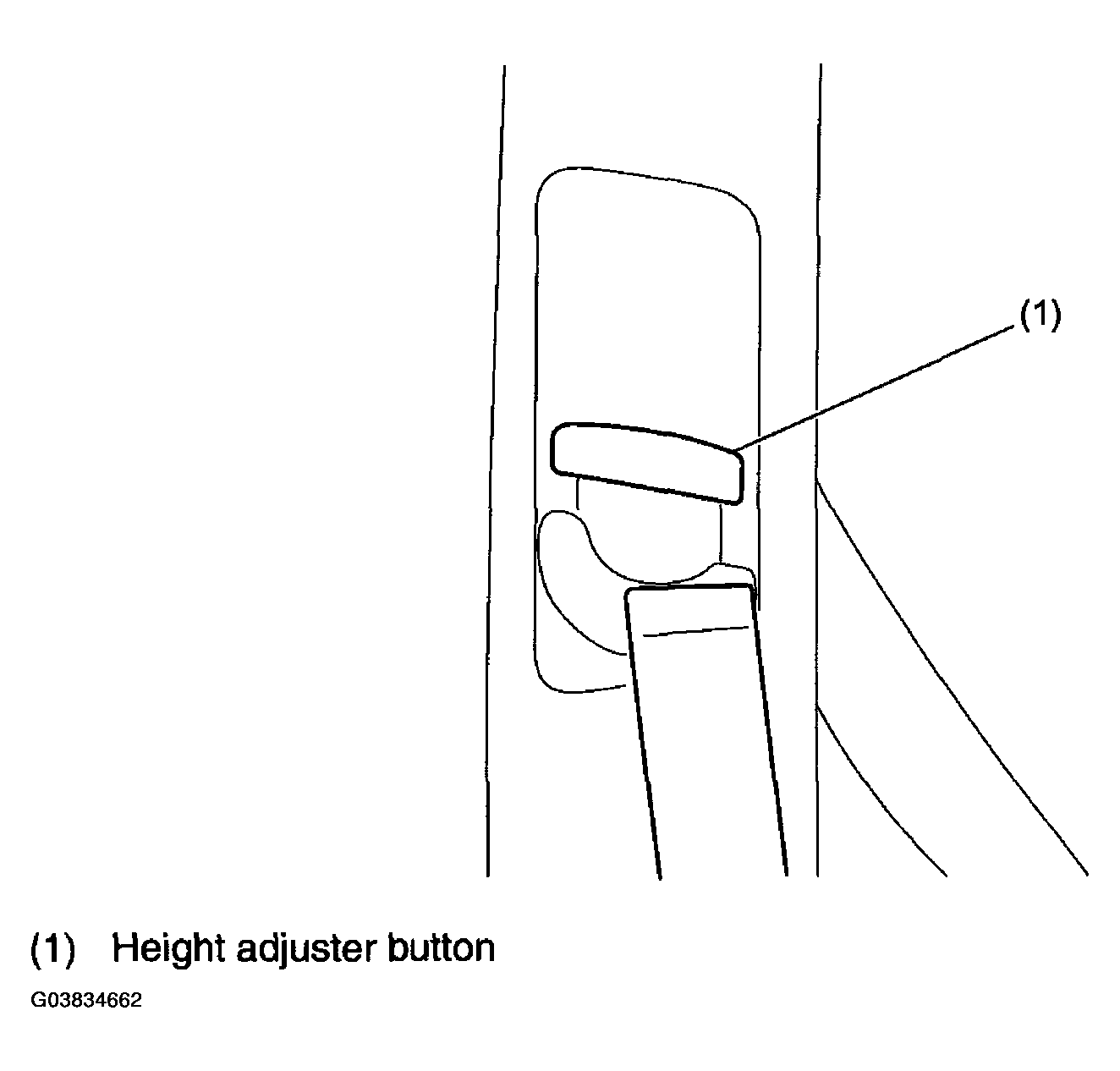

Fig 1: Identifying Adjustable Shoulder Belt Anchor
G03834662Courtesy of SUBARU OF AMERICA, INC.
