Control Module I/O Signal: Wiring Diagram

WARNING: This page is about a different car, the 2008 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

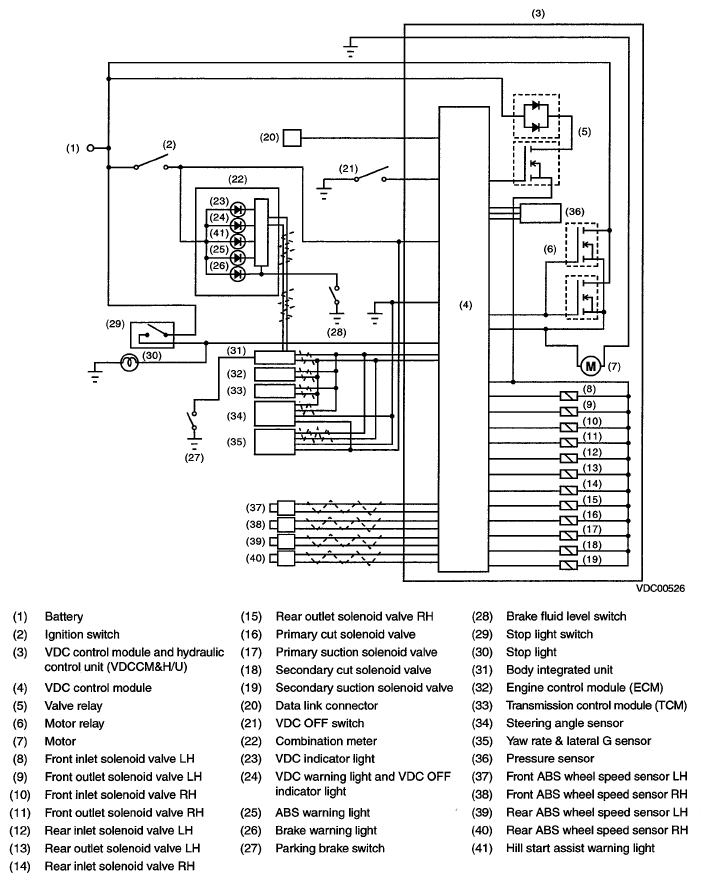

Fig 1: Control Module I/O Signal - Wiring Diagram
G05662806Courtesy of SUBARU OF AMERICA, INC.
