Fuel Tank Sensor Control Valve

The fuel tank sensor control valve is installed on the top of the fuel tank and its one end is connected to the fuel tank pressure sensor while its other end is open to the atmosphere.

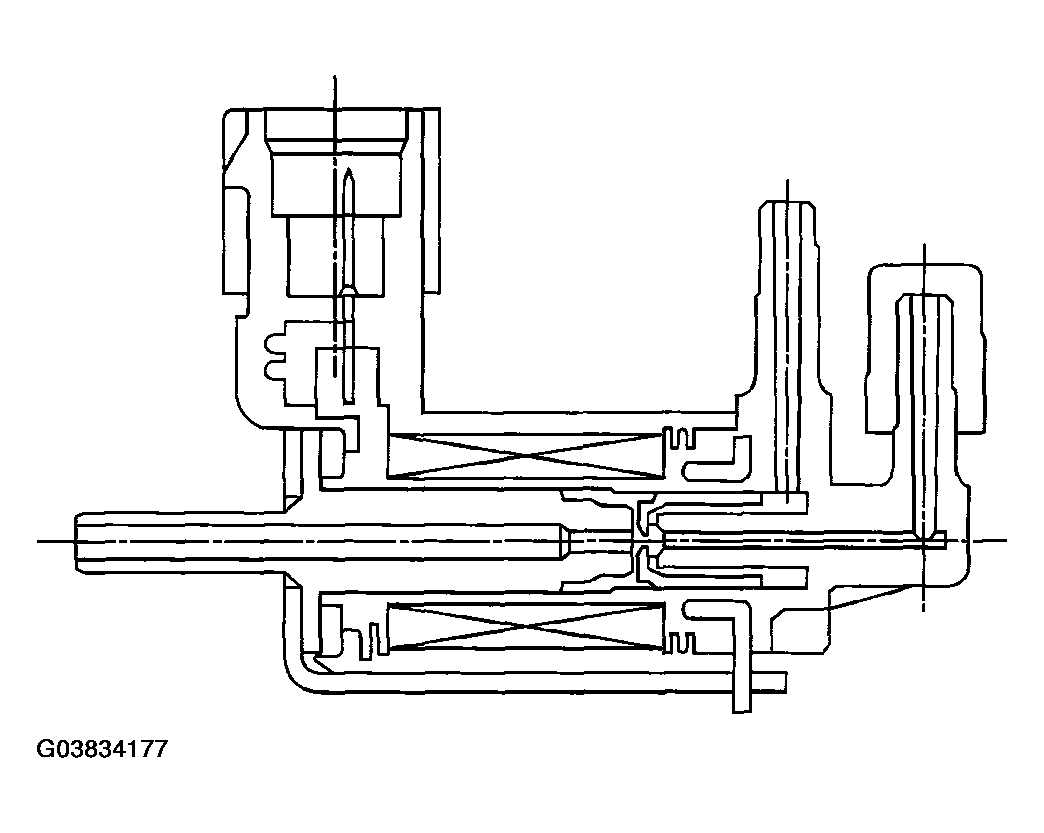

Fig 1: Line Diagram Of Fuel Tank Sensor Control Valve
G03834177Courtesy of SUBARU OF AMERICA, INC.
