Crankshaft Position, Camshaft Position And Knock Sensors

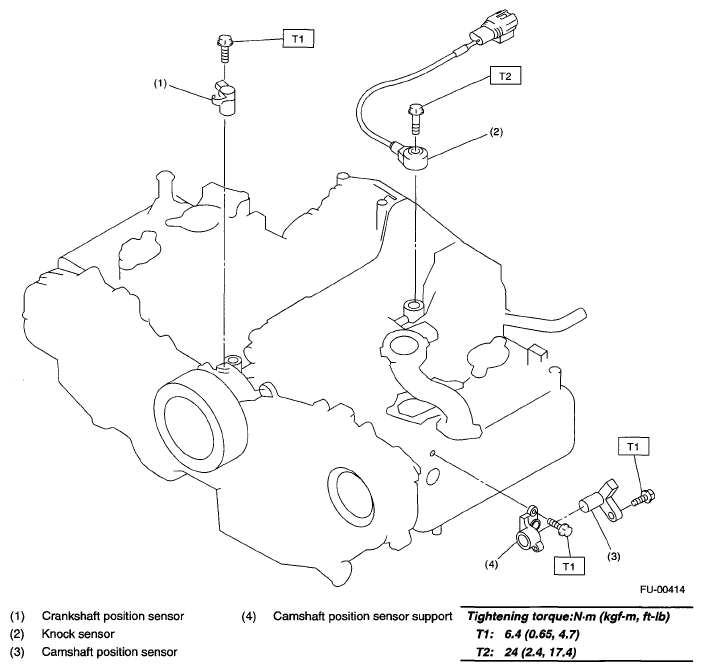

Fig 1: Crankshaft Position, Camshaft Position And Knock Sensors With Torque Specifications

G05339120

Courtesy of SUBARU OF AMERICA, INC.
