Mechanism & Function -- Automatic Transmission (4AT)
>>
Gear Train
>>
Operation
>>
Operation Table
Operation Table

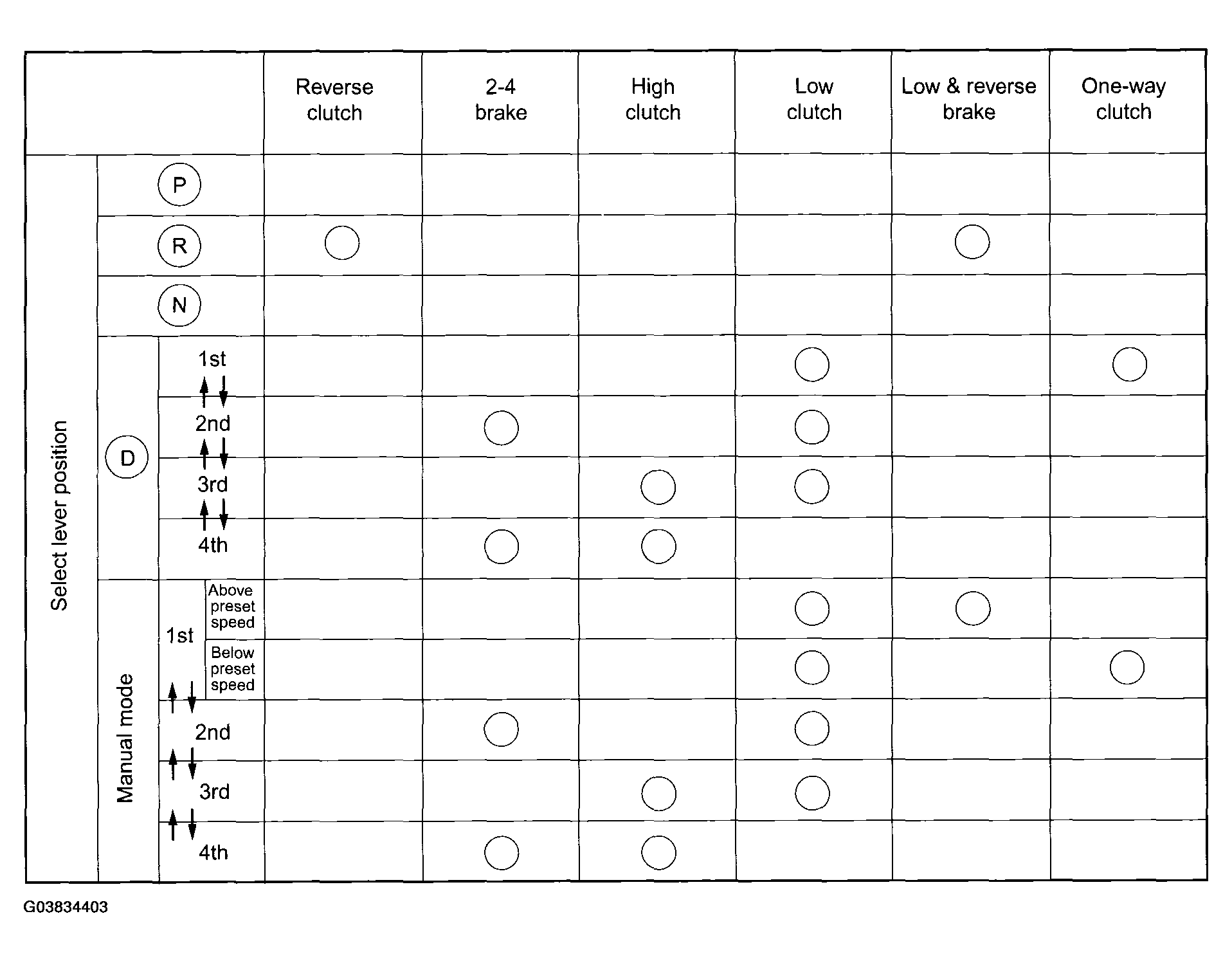

Fig 1: Gear Train Operation Table
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
