VTD model

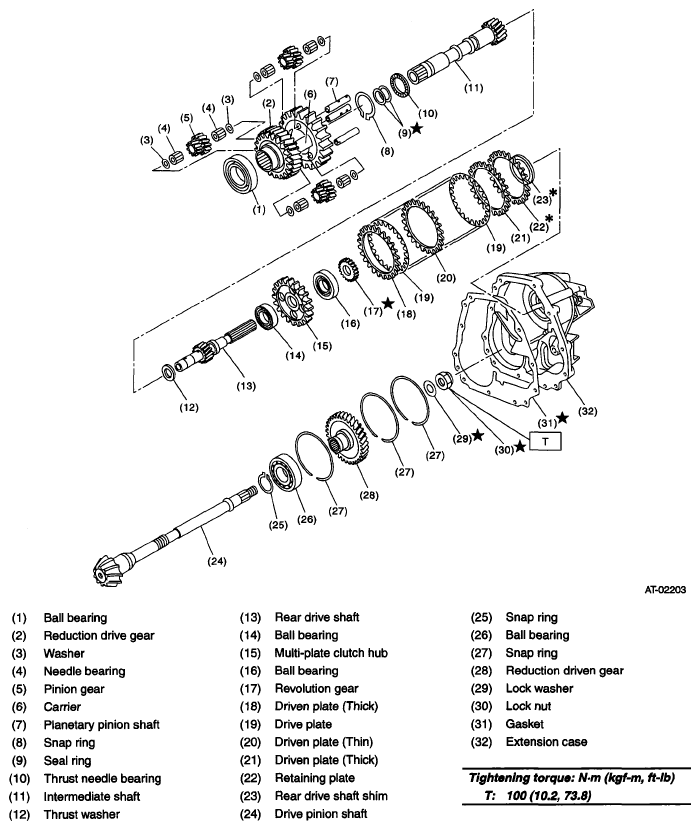

Fig 1: Identifying Reduction Gear Components - VTD Model
G05668195Courtesy of SUBARU OF AMERICA, INC.
