Rack Housing Assembly

  1. Disconnect the four pipes from gearbox.
    NOTE: Remove the pipes C and D, which are fixed to clamp plate, as a unit.
  2. Secure the gearbox removed from vehicle in a vise using ST.

    ST1 926200000 STAND

    ST2 34199AG000 BOSS D

    CAUTION: Secure the gearbox in a vise using ST as shown in the figure. Do not secure the gearbox without this ST.
    Fig 1: Securing Gearbox In Vise Using Stand ST1 926200000 And Boss D ST2 34199AG000
    G05032911Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the tie-rod end and lock nut from gearbox.
  4. Remove the small clip from the boot using pliers, and then move the boot to tie-rod end side.
    Fig 2: Removing Clip From Boot Using Pliers
    G05032912Courtesy of SUBARU OF AMERICA, INC.
  5. Using a flat tip screwdriver, remove the band from boot.
    NOTE: Replace the boot if there is damage, cracks or deterioration.
    Fig 3: Removing Band From Boot Using Flat Tip Screwdriver
    G05032913Courtesy of SUBARU OF AMERICA, INC.
  6. Using the ST, loosen the lock nut.

    ST 926230000 SPANNER

    Fig 4: Loosening Lock Nut Using Spanner ST 926230000
    G05032914Courtesy of SUBARU OF AMERICA, INC.
  7. Tighten the adjusting screw until it can no longer be tightened.
    Fig 5: Tightening Adjusting Screw
    G05032915Courtesy of SUBARU OF AMERICA, INC.
  8. While securing the rack with a 22 mm wrench, remove the tie-rod using 32 mm (1.26 in) wrench or adjustable wrench.
    Fig 6: Removing Tie-Rod
    G05032916Courtesy of SUBARU OF AMERICA, INC.
  9. Loosen the adjusting screw, and remove the spring and sleeve.
  10. Remove the two bolts securing valve assembly.
    Fig 7: Identifying Bolts Securing Valve Assembly
    G05032917Courtesy of SUBARU OF AMERICA, INC.
  11. Carefully draw out the input shaft and remove the valve assembly.
    Fig 8: Holding Input Shaft To Remove/Install Valve Assembly
    G05032918Courtesy of SUBARU OF AMERICA, INC.
  12. Using a drill, release the caulking of holder.
    CAUTION: Make a hole of 2 mm (0.08 in) depth using a drill with 3 mm (0.12 in) diameter.
    Fig 9: Drilling Hole To Release Caulking Of Holder
    G05032919Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the holder using a 36 mm wrench or adjustable wrench.
    Fig 10: Identifying Holder
    G05032920Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the rack bushing and rack stopper from rack assembly.
  15. Remove the oil seal from rack.
  16. Insert the ST from pinion housing side and remove the oil seal using a press.

    ST 34199AE050 OIL SEAL REMOVER

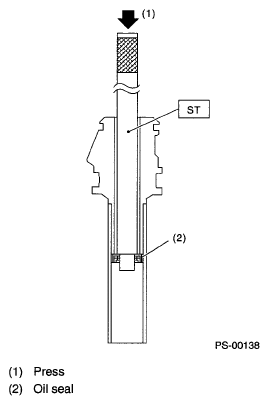

    Fig 11: Removing Oil Seal Using Oil Seal Remover ST 34199AE050
    G05032921Courtesy of SUBARU OF AMERICA, INC.
  17. Using a press, remove the bushing of gearbox installation portion.
    Fig 12: Removing Bushing Of Gearbox Using Press
    G05032922Courtesy of SUBARU OF AMERICA, INC.
