DTC P0111 Intake Air Temperature Sensor 1 Circuit Range/Performance
DTC DETECTING CONDITION:
- Detected when two consecutive driving cycles with fault occur.
- GENERAL DESCRIPTION < Ref. to DTC P0111 INTAKE AIR TEMPERATURE SENSOR 1 CIRCUIT RANGE/PERFORMANCE , Diagnostic Trouble Code (DTC) Detecting Criteria. >
TROUBLE SYMPTOM:
- Erroneous idling
- Poor driving performance
CAUTION:
After repairing or replacing the defective part, perform the Clear Memory Mode < Ref. to
OPERATION , Clear Memory Mode. > and Inspection Mode < Ref. to
PROCEDURE , Inspection Mode. >.

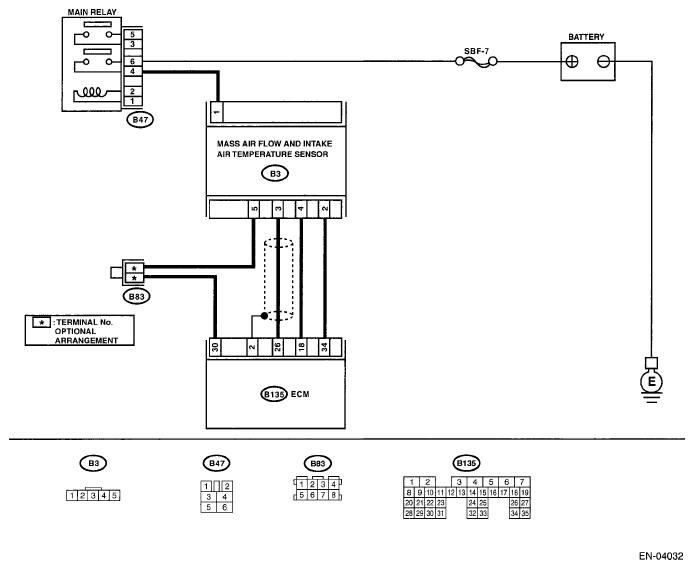

WIRING DIAGRAM:
DIAGNOSIS PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
| 1 CHECK ANY OTHER DTC ON DISPLAY. | Is any other DTC displayed? | Check DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to
LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >
NOTE:
In this case, it is not necessary to inspect DTC P0111.
|
Replace the intake air temperature sensor. < Ref. to MASS AIR FLOW AND INTAKE AIR TEMPERATURE SENSOR . > |
