Master Cylinder

WARNING: This page is about a different variant/trim than selected.

Non-turbo model

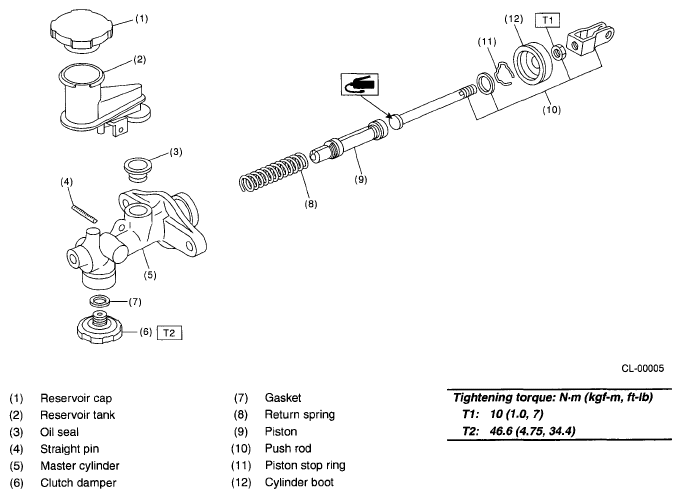

Fig 1: Identifying Master Cylinder Components - Non-Turbo Model
G04994711

Turbo model

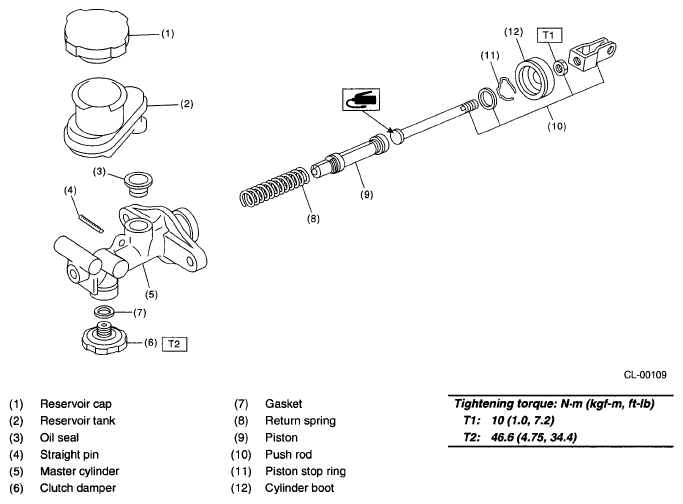

Fig 2: Identifying Master Cylinder Components - Turbo Model
G04994712
