Home >> Subaru >> 2006 >> Forester X, Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake Control System - Vehicle Dynamics Control (VDC) >> VDC Sequence Control >> Operation >> Conditions For VDC Sequence Control

Conditions For VDC Sequence Control

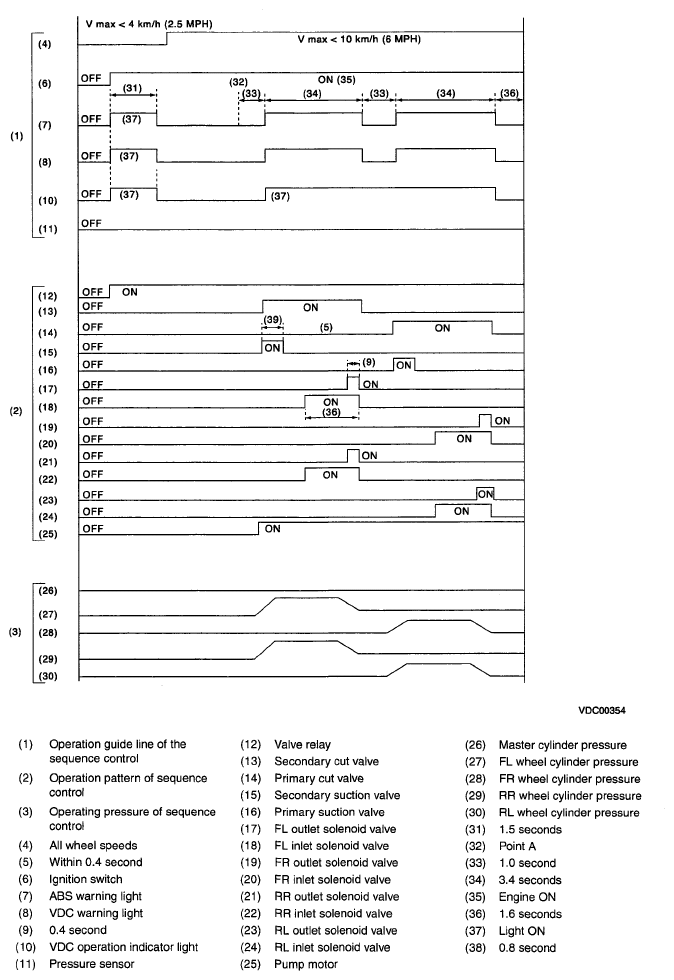

Fig 1: Blinking Pattern Of VDC Sequence Control

G04994875

NOTE: Operation starts from point A.
