DTC P1134 - A/F Sensor Micro-Computer Problem -
- DTC DETECTING CONDITION:
- Detected simultaneously at occurrence of malfunction.

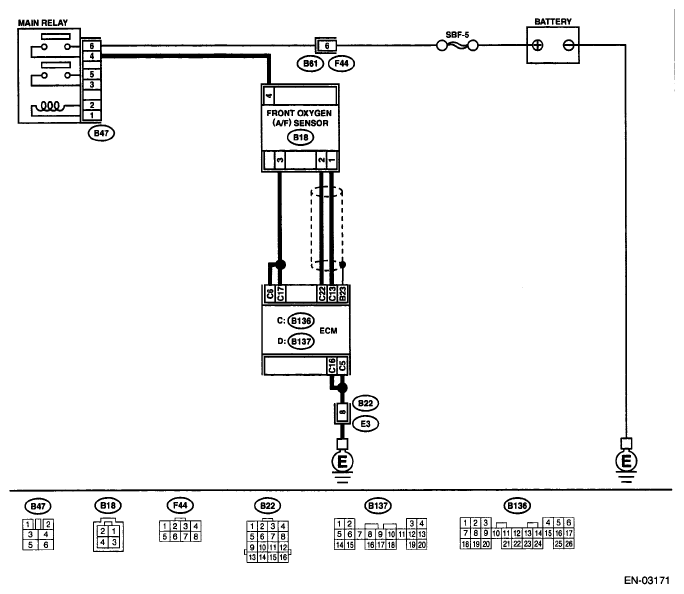

CAUTION: After repair or replacement of malfunctioning parts, conduct Clear Memory Mode < Ref. to OPERATION , CLEAR MEMORY MODE > and INSPECTION MODE < Ref. to OPERATION , INSPECTION MODE. > - WIRING DIAGRAM:
DIAGNOSTIC PROCEDURE
| Step | Check | Yes | No |
|---|---|---|---|
| 1 CHECK ANY OTHER DTC ON DISPLAY. | Is any other DTC displayed? | Inspect the related DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to
LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >
NOTE:
It is not necessary to inspect DTC P1134.
|
Replace ECM. < Ref. to ENGINE CONTROL MODULE . > |
