Control Module I/O Signal: Schematic

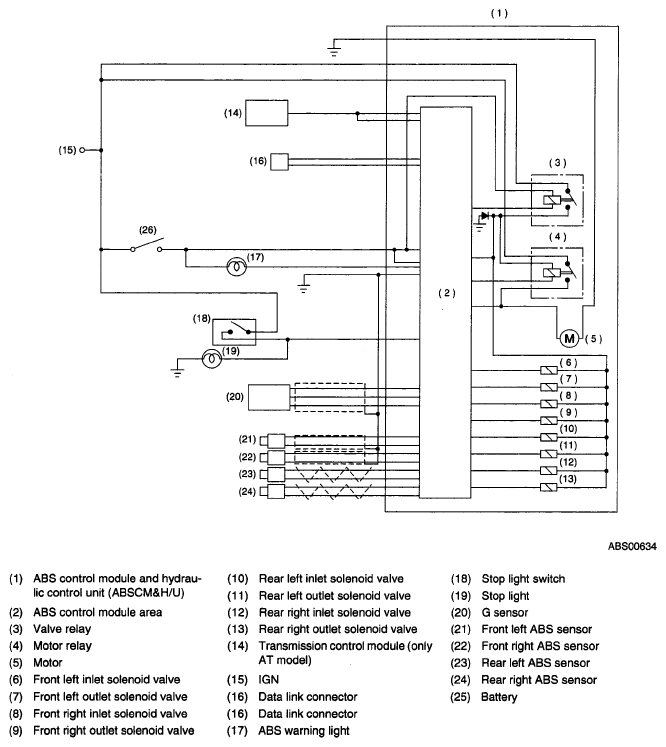

Fig 1: ABS Schematic Diagram

G04991177

Courtesy of SUBARU OF AMERICA, INC.
