Home >> Subaru >> 2005 >> Outback R >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Engine (Diagnostics) (H6DO) >> Diagnostics for Engine Starting Failure >> Procedure

Diagnostics for Engine Starting Failure: Procedure

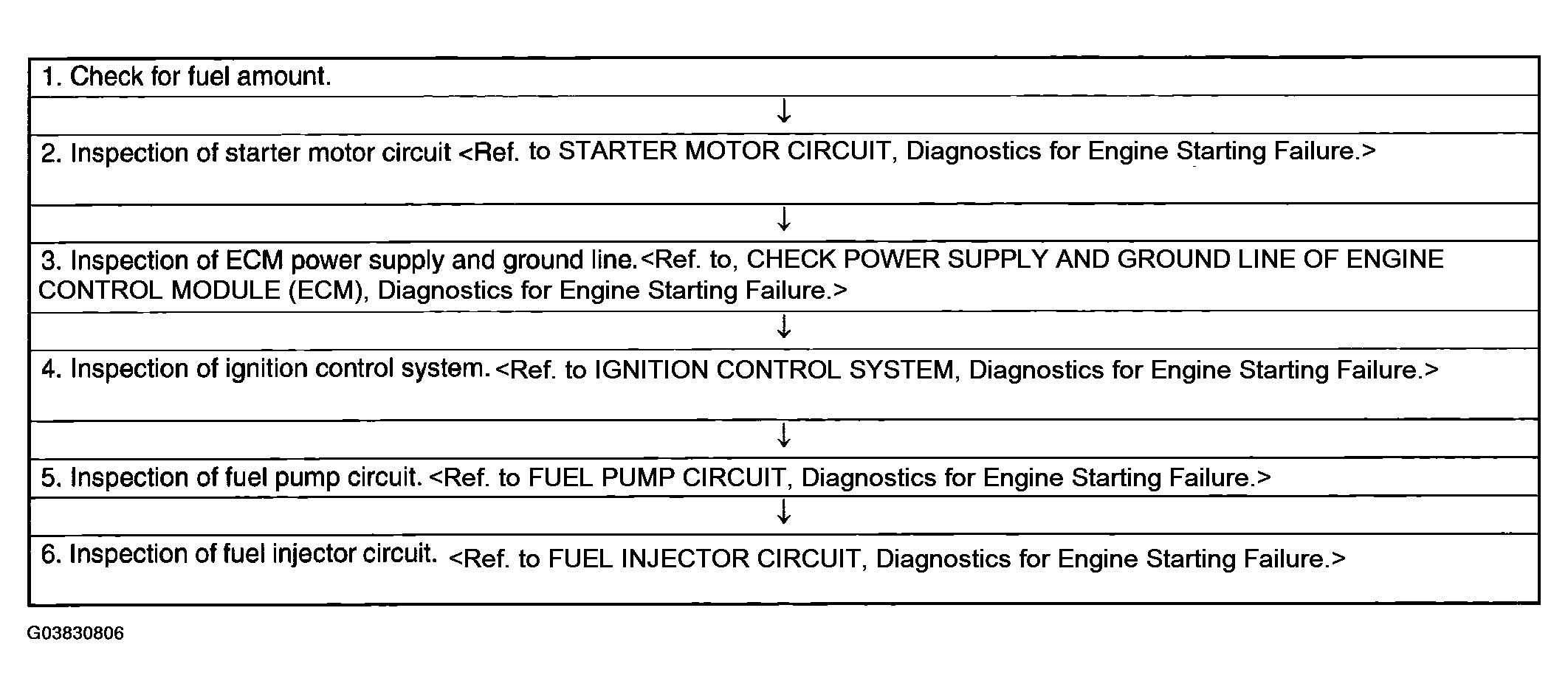

Fig 1: Diagnostics For Engine Starting Failure Chart

G03830806

Courtesy of SUBARU OF AMERICA, INC.
