Diagnostic Trouble Code (DTC) Detecting Criteria (H6DO)
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P1443 Vent Control Solenoid Valve Function Problem
>>
Component Description
Component Description

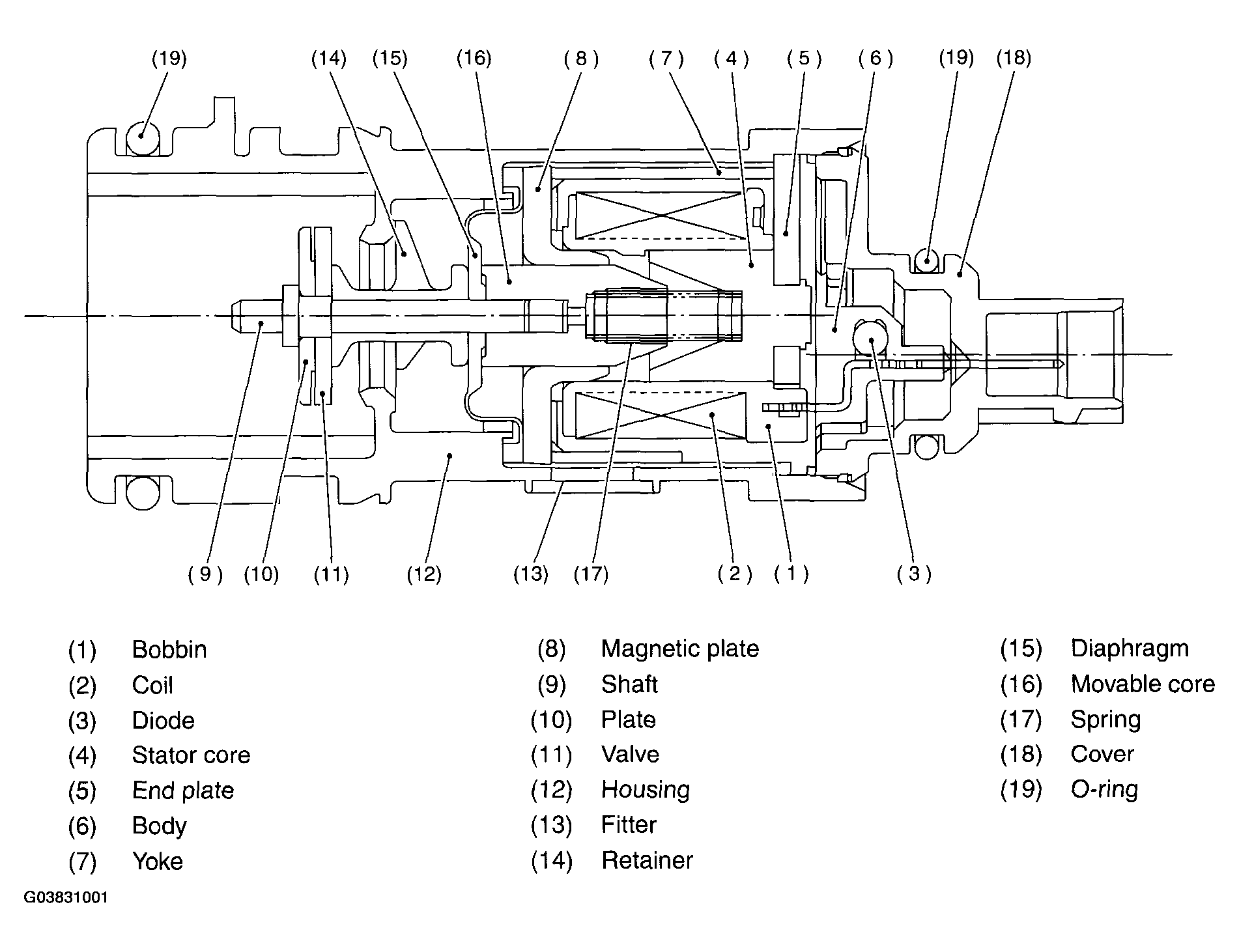

Fig 1: Component Description - (DTC P1443 Vent Control Solenoid Valve Function Problem)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
