Diagnostic Trouble Code (DTC) Detecting Criteria (H6DO)
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P0463 Fuel Level Sensor Circuit High Input
>>
Component Description
Component Description

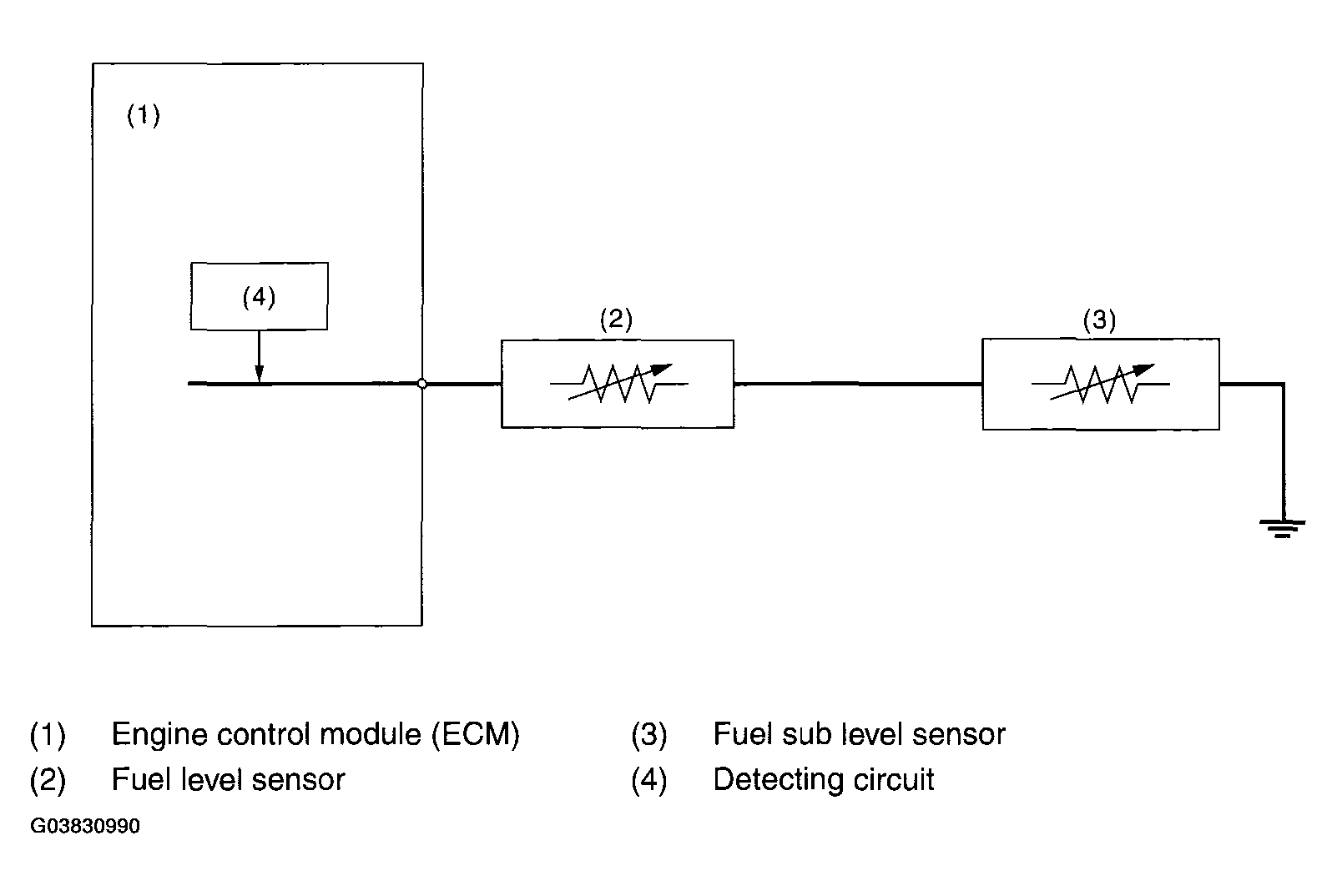

Fig 1: Component Description - (DTC P0463 Fuel Level Sensor Circuit High Input)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
