Wiring Diagram:

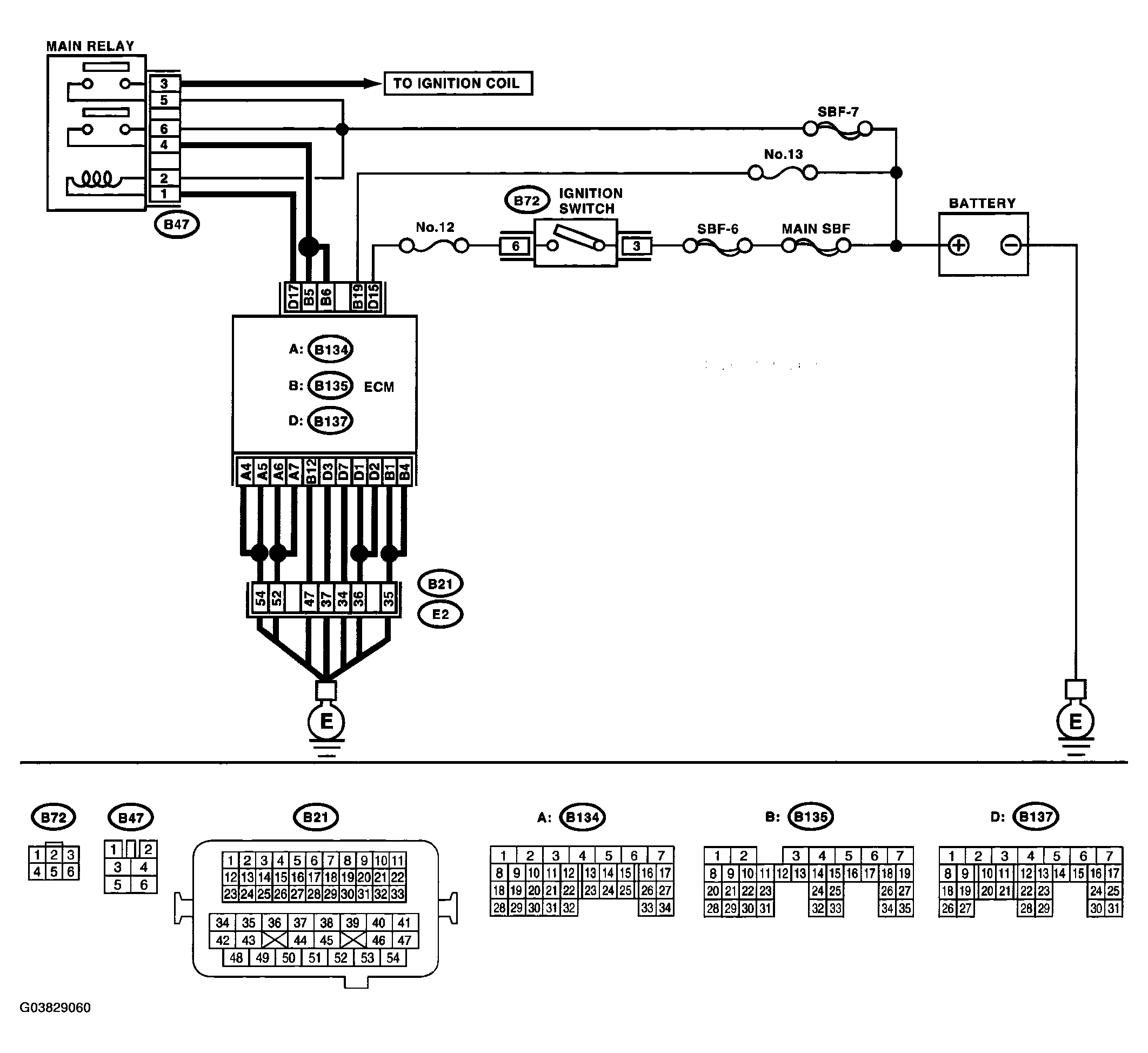

Fig 1: Wiring Diagram - DTC P0604 Internal Control Module Random Access Memory (Ram) Error
G03829060Courtesy of SUBARU OF AMERICA, INC.
DTC P0604 DIAGNOSTIC PROCEDURE

Step Check Yes No
1. CHECK FOR ANY OTHER DTC ON DISPLAY.  Is any other DTC displayed? Check the relevant DTC using the List of Diagnostic Trouble Code (DTC). < Ref. to , LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . > A temporary poor contact occurs.
