Main Relay: Removal

  1. Disconnect the ground cable from battery.

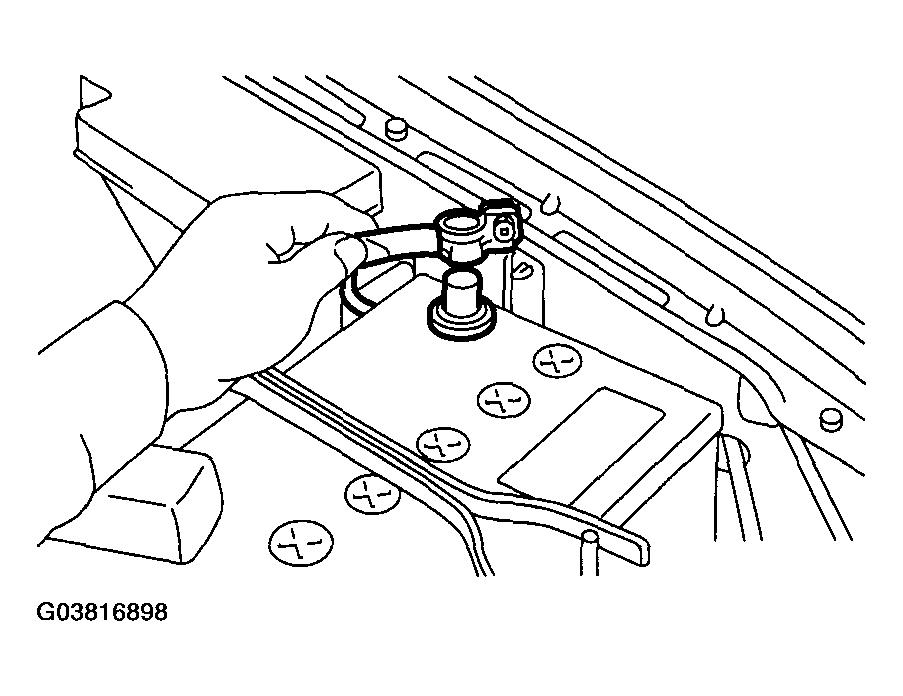

    Fig 1: Disconnecting Ground Cable From Battery
    G03816898Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the passenger's side front side sill cover.
  3. Remove the bolt which holds the main relay bracket on the body.
  4. Disconnect the connectors from the main relay.
    Fig 2: Disconnecting Connectors From Main Relay
    G03816899Courtesy of SUBARU OF AMERICA, INC.
